Trim - C-Pillar - Lower - LH - Remove And Replace: Remove

  1. Remove LH and RH side bolster trims. See Bolster - Outer - Seat - 2nd Row - LH (Remove and Replace) .
  2. Remove 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace) .
  3. Fold the LH 2nd row seat to the down position.
    CAUTION: If seat cushion is not present, protect the seat as required.
  4. Release the clips (x8) that attach the LH lower C-pillar trim to the C-pillar, and then remove the trim from the vehicle.

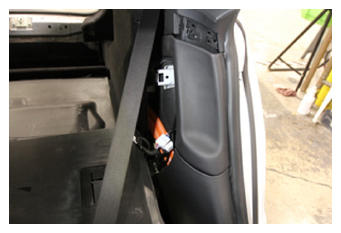

    G15084473Courtesy of TESLA, INC.

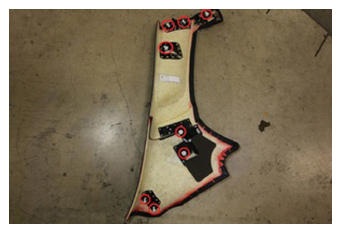

    G15084474Courtesy of TESLA, INC.
