Trim - A-Pillar - Upper - LH - Remove And Replace: Remove
- Open the LH front door and lower the LH front window.
- Remove the LH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove And Replace) .
- Remove the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace)
.

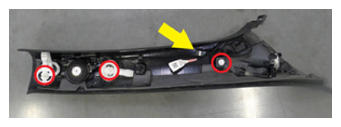

- Remove the LH upper A-pillar trim:

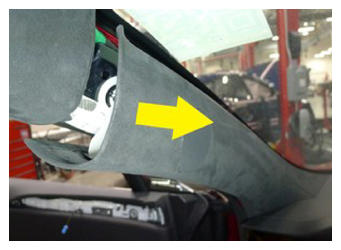

- Pull inside of the upper portion of the upper A-pillar trim.

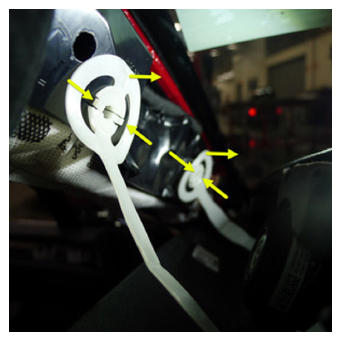

- Press the tabs (x2) to remove each tether clips from the body side.

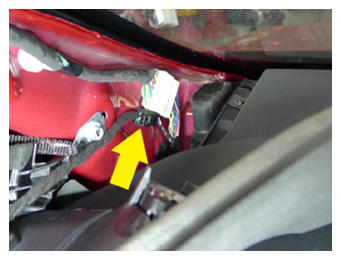

- Disconnect the tweeter electrical connector.
- Pull the upper A-pillar trim upward to remove the trim from the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
