Trim - A-Pillar - Upper - LH - Remove And Replace: Install
- Install the LH upper A-pillar trim:
- Slide the bottom of trim along the instrument panel and speaker grille.

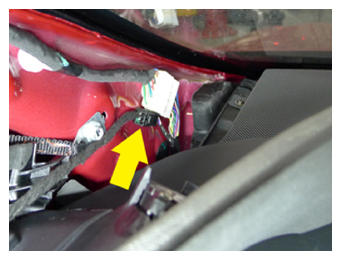

- Connect the tweeter electrical connector.

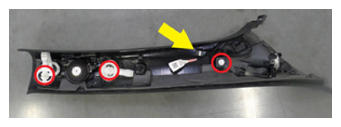

- Attach each tether (x2) to the body side.

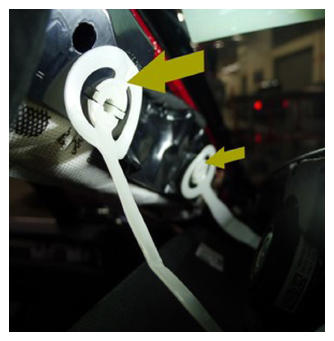

- Set the tether clips (x2) starting at the bottom and work up.

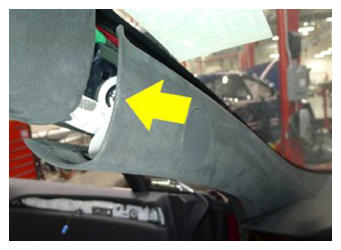

- Pull the seal over trim.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace)
.
- Install the LH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove And Replace) .
- Raise the LH front window and close the LH front door.
