Trim - Side Wall - Trunk - LH - Remove And Replace: Remove

  1. Remove the rear trunk parcel shelf. See Parcel Shelf - Rear Trunk (Remove And Replace) .
  2. Remove the rear trunk load floor. See Trunk Load Floor - Rear (Remove And Replace) .
  3. Remove the rear wall rear trunk trim. See Trim - Rear Trunk - Rear Wall (Remove And Replace) .
  4. Remove the LH trunk load floor bracket. See Bracket - Trunk Load Floor - LH (Remove And Replace) .
  5. Release the velcro strips (x3) that attach the LH trunk side wall trim to the body, and then remove trim from the vehicle.

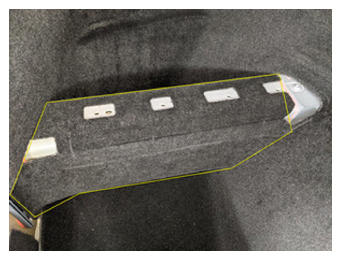

    G15084810Courtesy of TESLA, INC.

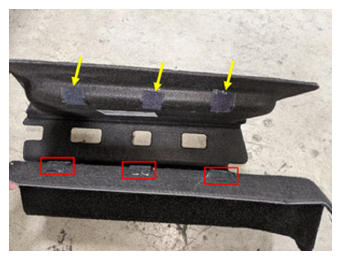

    G15084811Courtesy of TESLA, INC.
