Coat Hook - Rear - LH - Remove And Replace: Install

Install the bolts (x4) that attach the rear coat hook to the headliner as follows:

1.2 N.m (.9 ft-lbs)

Tip: Use of the following tool(s) is recommended:

Install the upper tether using the top rear bolt first.

Courtesy of TESLA, INC.

Fold the tether strap to align the lower holes, and then install the lower rear bolt.

NOTE: Make sure the tether is not twisted.

Courtesy of TESLA, INC.

Install the remaining bolts (x2).

Courtesy of TESLA, INC.

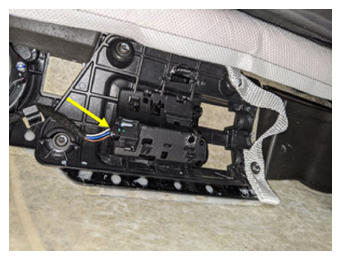

Connect the rear coat hook electrical connector.

Courtesy of TESLA, INC.
Secure the tabs (x4) that attach the coat hook bezel to the headliner.

Courtesy of TESLA, INC.
Secure the clips (x9) that attach the LH rear corner of the headliner to the body.
NOTE: Push the rear coat hook upward and outward to secure the hooks to the body flange at the top of the coat hook assembly.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install the bolt that attaches the rear corner of the headliner to the body.
3 N.m (2.2 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
Courtesy of TESLA, INC.
Install the LH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove And Replace) .
Install the LH mid C-pillar trim. See Trim - C-Pillar - Mid - LH (Remove And Replace) .
Secure the clips (x4) that attach the LH lower C-pillar trim to the mid C-pillar trim.

Courtesy of TESLA, INC.
Install the LH 2nd row seat outer bolster. See Bolster - Outer - Seat - 2nd Row - LH (Remove and Replace) .
Put the LH rear seat in the upright position.
Install the rear trunk parcel shelf. See Parcel Shelf - Rear Trunk (Remove And Replace) .
Close the liftgate.
Install the LH upper B-pillar trim. See Trim - B-Pillar - Upper - LH (Remove And Replace) .
Close the LH rear door.
Move the driver seat back to its original position.
Raise the LH front window and close the LH front door.
