- Remove the IP sub-assembly. See Sub-Assembly - Instrument Panel (Remove And Install) .

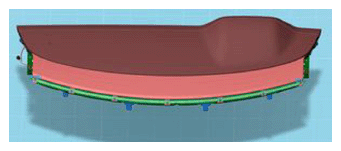

- Remove IP windshield seal
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

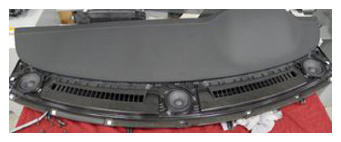

- Release IP speaker mesh
NOTE:
9x screws, T20, 3 N.m
 Courtesy of TESLA, INC.
|

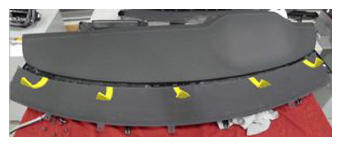

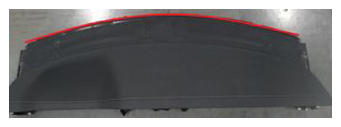

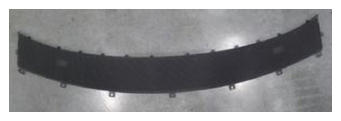

- Remove IP speaker mesh
NOTE:
Lift and disengage from IP sub-assembly
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

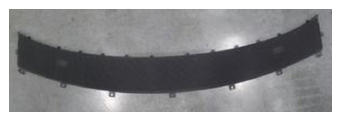

- Install IP speaker mesh
NOTE:
Engage leading edge into IP sub-assembly and lower into place
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

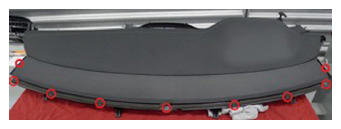

- Secure IP speaker mesh
NOTE:
9x screws, T20, 3 N.m
 Courtesy of TESLA, INC.
|
- Install IP windshield seal
NOTE:
Clean with IPA, Allow 1 minute to dry
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install the instrument panel sub-assembly and all other parts that were removed for access. See Sub-Assembly - Instrument Panel (Remove And Install) .
