Bump Stop - Hood - Remove And Replace: Install

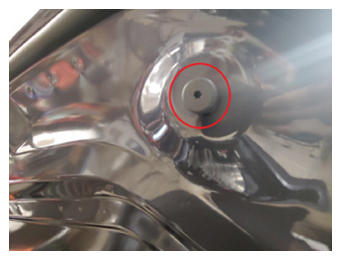

  1. Install the hood bump stop onto the hood.
    G15079337Courtesy of TESLA, INC.
  2. Close the hood.

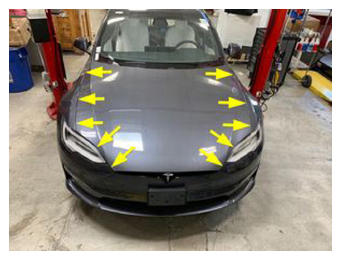

  3. Check the gap/flushness between the hood and CVIS points.
    NOTE: Measure 10x points labeled in the picture. Refer to CVIS for current specifications.
    G15079338Courtesy of TESLA, INC.
  4. Open the hood.
  5. Adjust the hood to achieve flushness target.
    NOTE: Rotate the hood bump stop clockwise to decrease bumper height or counterclockwise to increase bumper height as necessary to achieve flushness target.
    G15079339Courtesy of TESLA, INC.
  6. Close the hood.
