T Badge Support - Fascia - Front - Remove And Replace: Remove

Remove the front fascia assembly Fascia Assembly - Front (Remove And Install) .

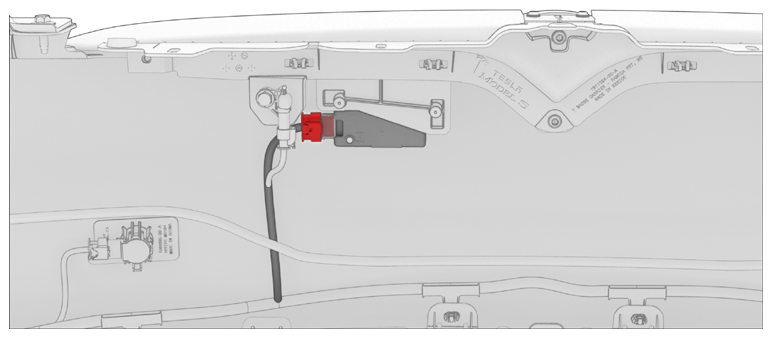

Disconnect the electrical harness from the BLE module.
CAUTION: DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.

Courtesy of TESLA, INC.

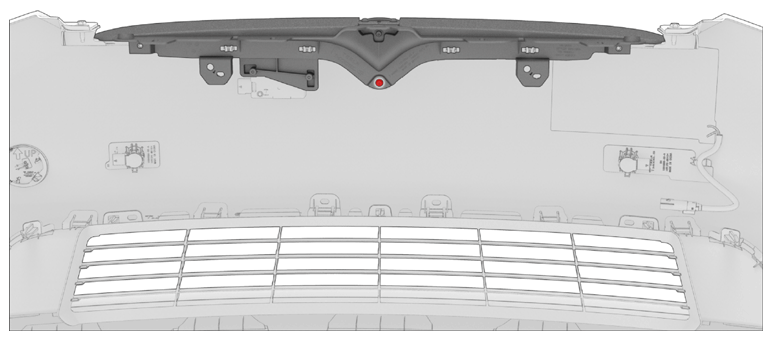

Remove the screw that attaches the T badge support to the front fascia.
Tip: Use of the following tool(s) is recommended:
- Torx T25 socket
- 4 in extension
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.

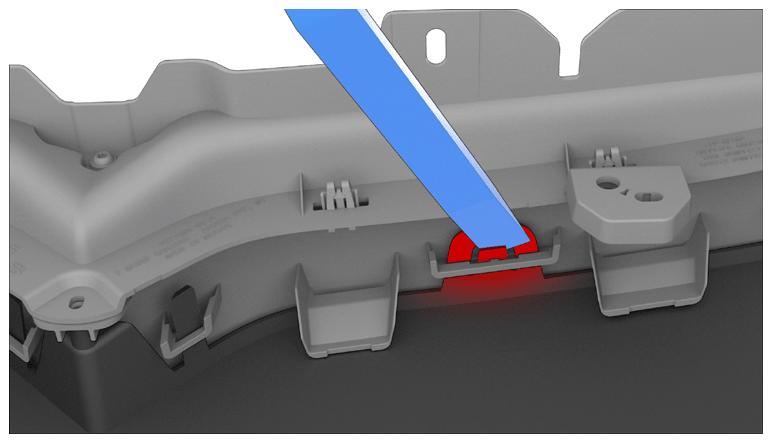

Release the T badge support tabs from the front fascia, and then remove the T badge support from the front fascia.

Courtesy of TESLA, INC.

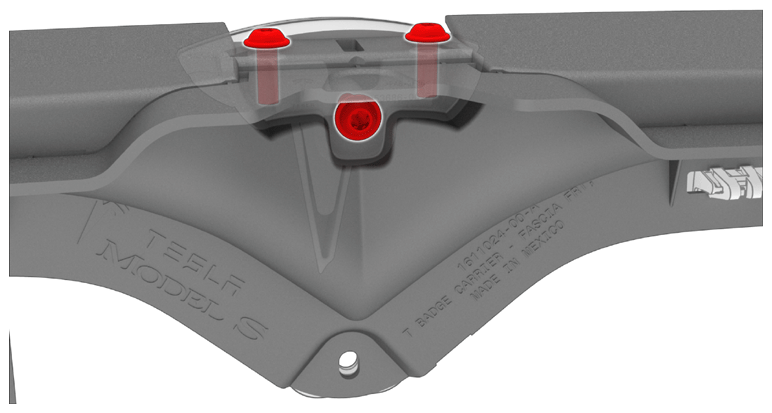

Remove the screws that attach the T badge to the T badge support.
Tip: Use of the following tool(s) is recommended:
- Torx T25 socket
- 4 in extension
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.

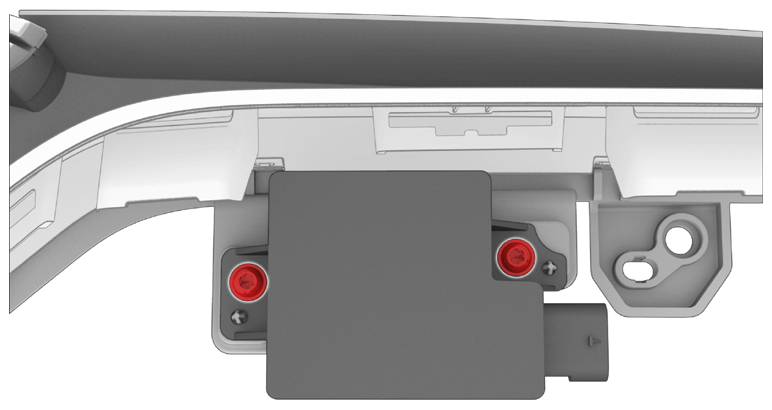

Remove the two screws that attach the front BLE module to the T badge support.
Tip: Use of the following tool(s) is recommended:
- Torx T25 socket
- 4 in extension
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.

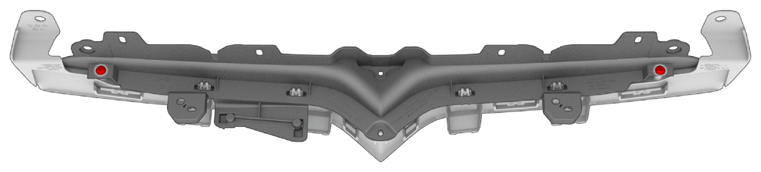

Remove the two screws that attach the front fascia V bar to the T badge support.
Tip: Use of the following tool(s) is recommended:
- Torx T25 socket
- 4 in extension
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.

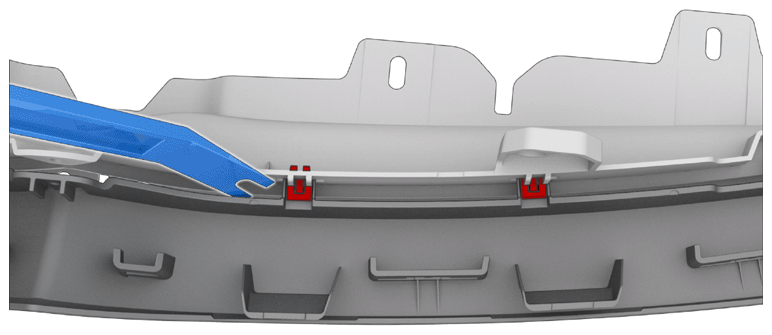

Release the four clips that attach the front fascia V bar to the T badge support, and then remove the V bar from the T badge support.

Courtesy of TESLA, INC.
