Fascia Assembly - Rear (HW4) - Remove And Replace: Remove
- Remove the rear fascia assembly from the vehicle. See Fascia Assembly - Rear (Remove And Install) .

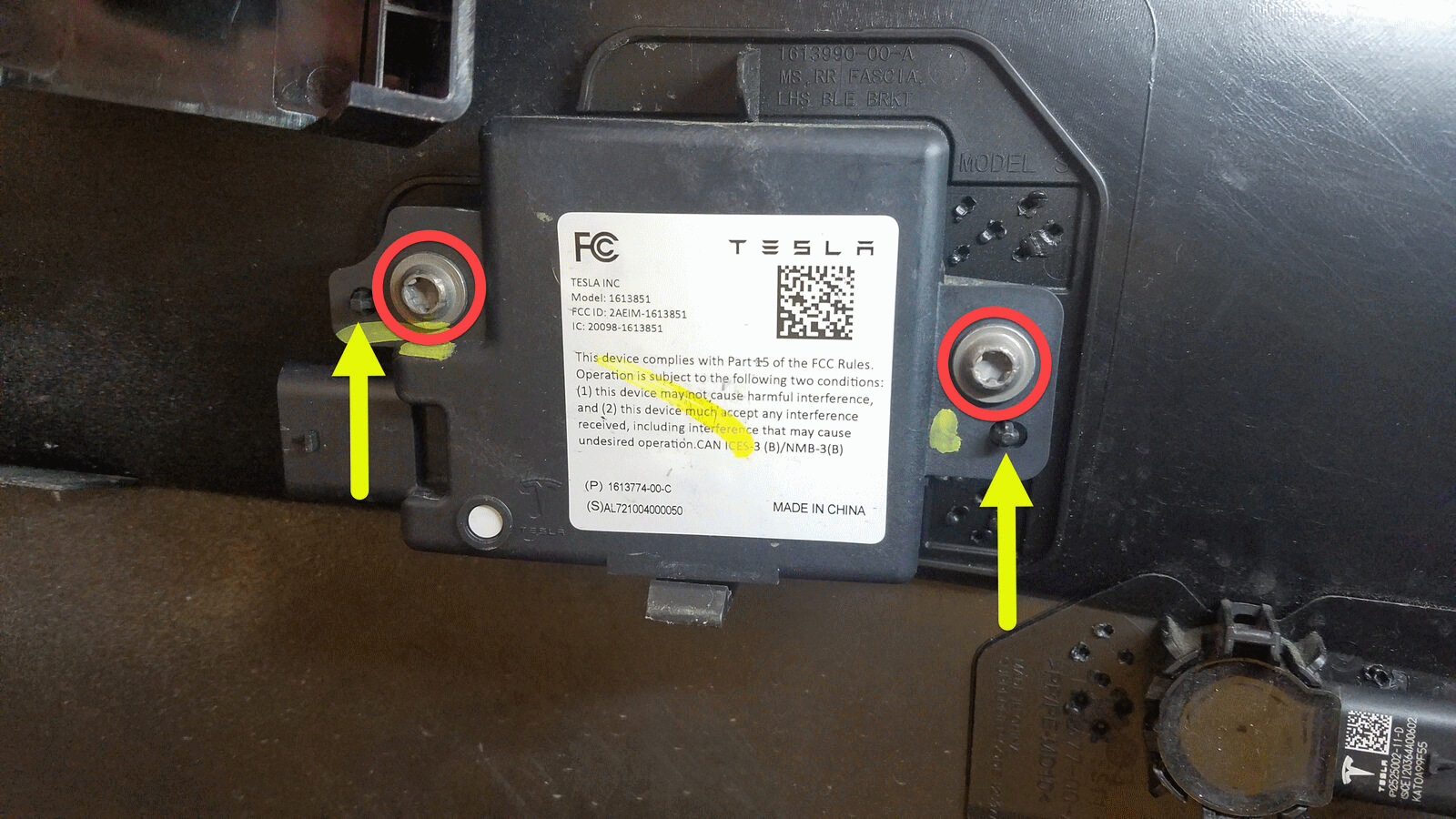

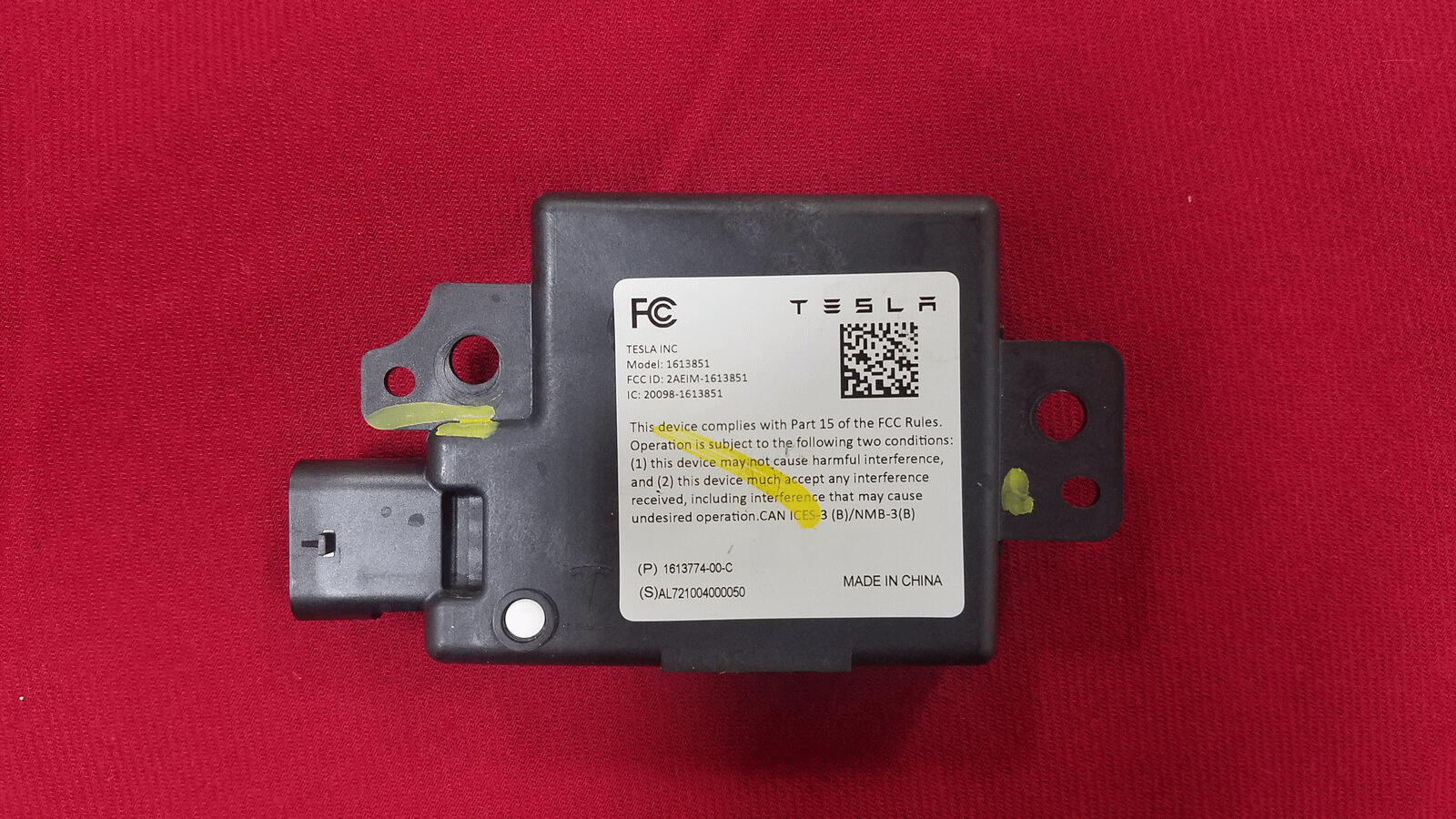

- Remove the screws (x2) that attach the LH rear BLE assembly to the rear fascia, and then remove the assembly from the fascia. Repeat this step for the RH rear BLE assembly.
3 N.m (2.2 lbs-ft)
Tip: Use of the following tool(s) is recommended:
- Torx T25 socket
- Flex head ratchet/flex head torque wrench
- 4 in extension
LH shown; RH similar
LH shown; RH similar

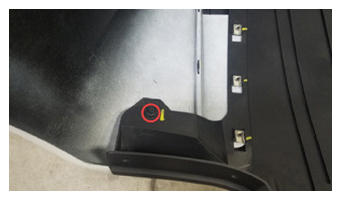

- Remove the top LH and RH bolts that attach the rear diffuser to the rear fascia assembly.
Tip: Use of the following tool(s) is recommended:
- 10 mm deep socket
- Flex head ratchet/flex head torque wrench
LH shown; RH similar

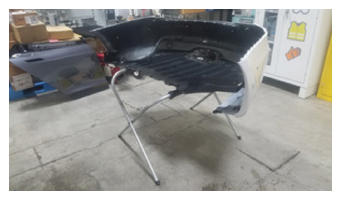

- Position the rear fascia assembly upside down on workbench.

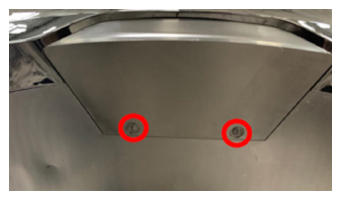

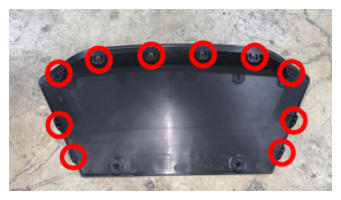

- Remove the screws (x2) and release the tabs (x10) that attach the tow hitch cover to the rear fascia assembly, and then remove the cover from the assembly.
Tip: Use of the following tool(s) is recommended:
- Large flathead screwdriver

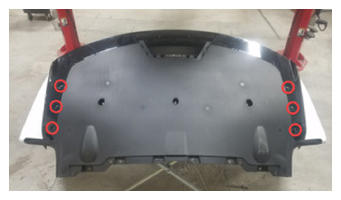

CAUTION: Plastic screws are captive. Be careful to avoid damage. - Remove the bottom bolts (x6) that attach the rear diffuser to the rear fascia assembly.
Tip: Use of the following tool(s) is recommended:
- 10 mm deep socket
- Flex head ratchet/flex head torque wrench

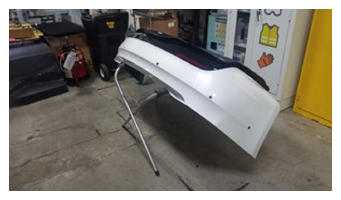

- Position the rear fascia assembly upright on the workbench.

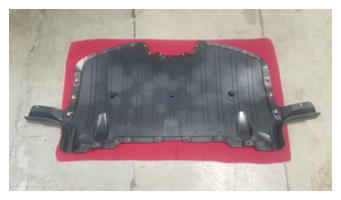

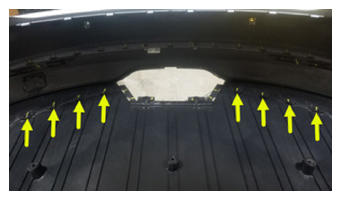

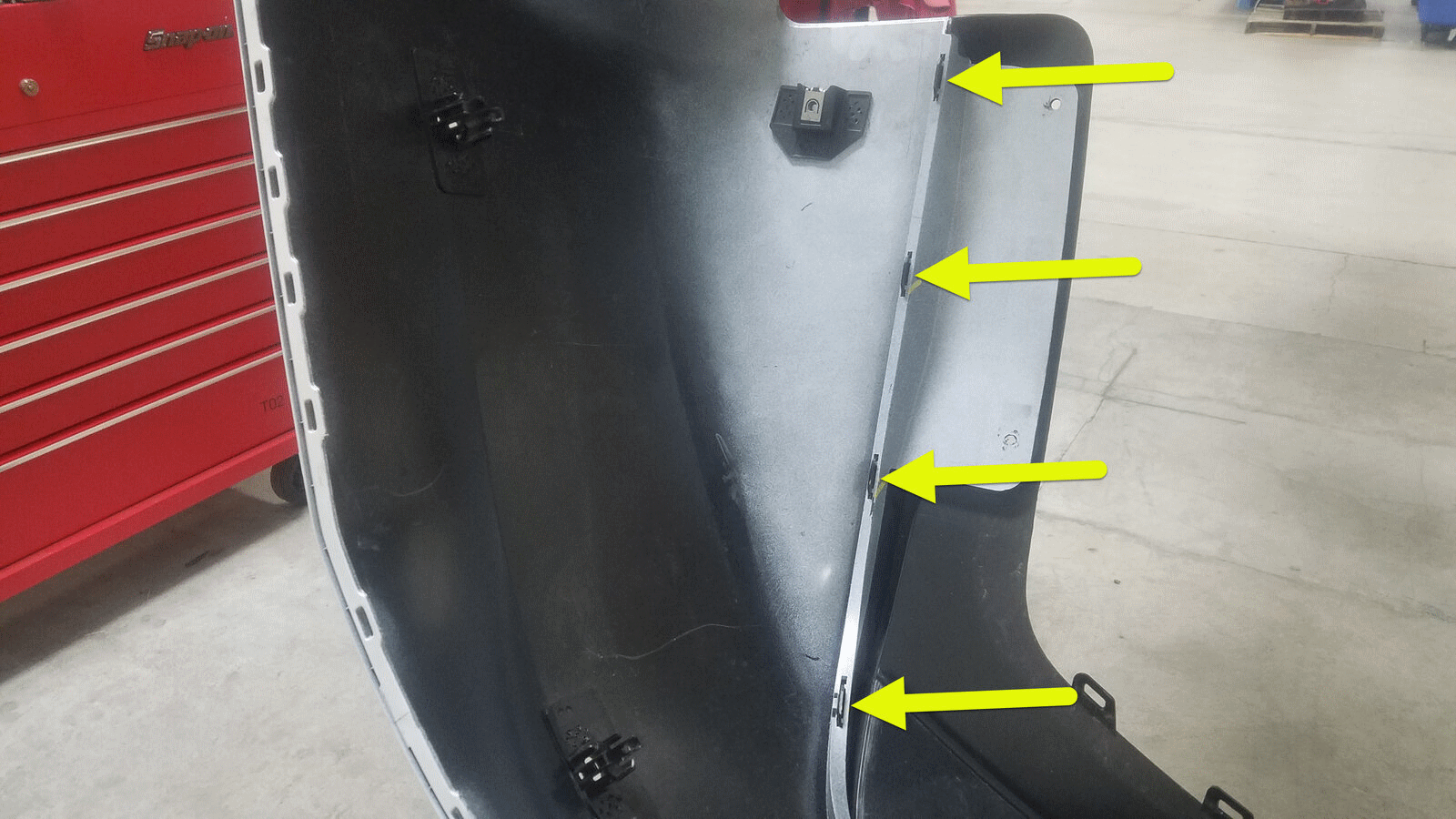

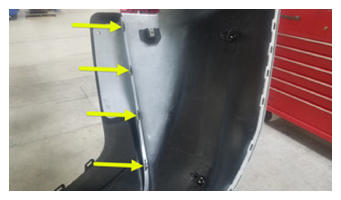

- Release the tabs (x8) that attach the rear diffuser to the rear fascia assembly, and then remove the diffuser from the assembly.

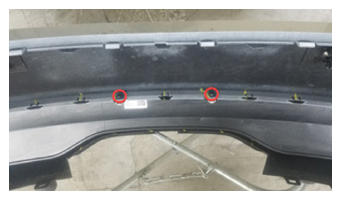

- Remove the bolts (x2) that attach the rear lower fascia to the rear fascia assembly.
Tip: Use of the following tool(s) is recommended:
- 10 mm deep socket
- Flex head ratchet/flex head torque wrench

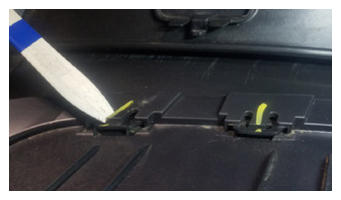

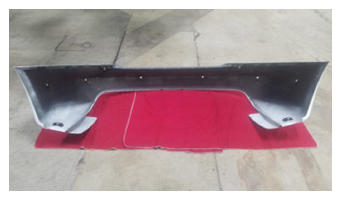

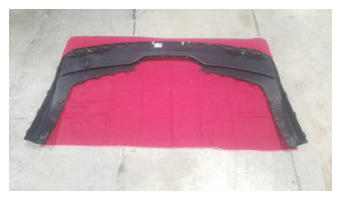

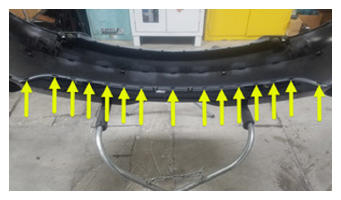

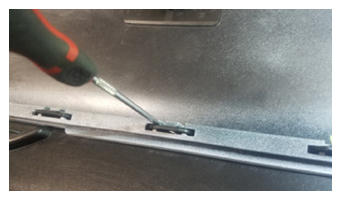

- Release the tabs (x23) that attach the rear lower fascia to the rear fascia assembly, and then remove the lower fascia from the assembly.NOTE: Insert a pick behind the lower fascia tab, and the rotate to pry the fascia assembly tab upward.
