Deflector - Valance - Front Fascia - LH - Remove And Replace: Install

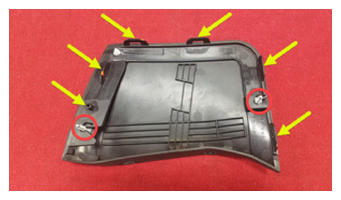

Install LH front fascia valance deflector onto the valance and front fascia.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install the nuts (x2) that attach the LH front fascia valance deflector to the valance and front fascia.
Torque 3 N.m
- 10 mm deep socket
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.
Install the clips (x3) that attach the LH wheel arch liner to the valance and front fascia.

Courtesy of TESLA, INC.
Apply Loctite 222 to the fasteners, and then install the bolts that attach the front fascia valance to the front aero shield.
Torque 6 N.m

NOTE: Insert the valance datums into the aero shield alignment holes.

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- Flex head ratchet/flex head torque wrench
- 4 in extension
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Lower the vehicle and remove it from the lift. See Raise Vehicle - 2 Post Lift .
