Hose - Washer - Reservoir - Remove And Replace: Remove

  1. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  2. Remove the LH underhood apron. See Underhood Apron - LH (Remove and Replace) .

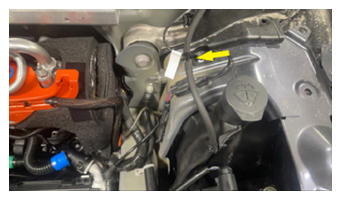

  3. Release the shock tower hose from the washer tank hose.
    G15092940Courtesy of TESLA, INC.

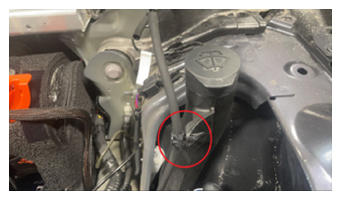

  4. Remove the retainer clip from the washer bottle.
    G15092941Courtesy of TESLA, INC.
  5. Raise and support the vehicle. See Raise Vehicle - 2 Post Lift .
  6. Remove the LH front wheel. See Wheel (Remove and Install) .

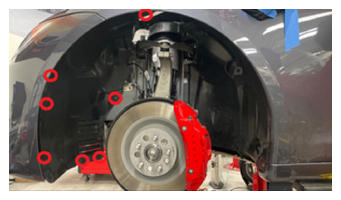

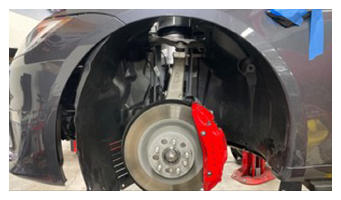

  7. Release the clips (x7) that attach the front portion of the LH front wheel house liner to the vehicle.
    G15092942Courtesy of TESLA, INC.
    G15092943Courtesy of TESLA, INC.

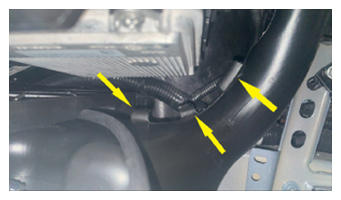

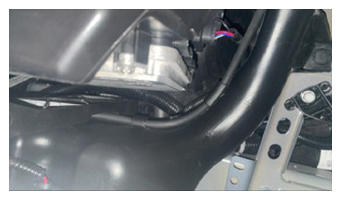

  8. Release the hooks (x3) that attach the washer hose to the washer reservoir.
    G15092944Courtesy of TESLA, INC.
    G15092945Courtesy of TESLA, INC.

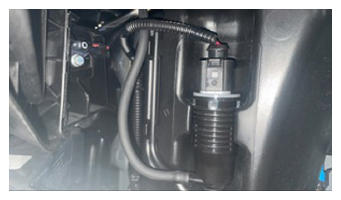

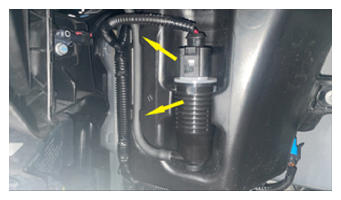

  9. Release the tabs (x2) that attach the washer hose to the reservoir.
    NOTE: 2x tabs
    G15092946Courtesy of TESLA, INC.
    G15092947Courtesy of TESLA, INC.

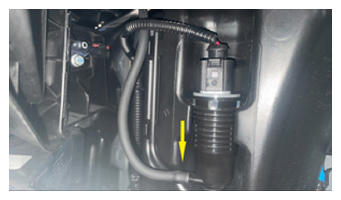

  10. Disconnect washer hose from the washer pump.
    CAUTION: Be careful when separating hose from washer pump as to not damage the washer pump.
    G15092948Courtesy of TESLA, INC.
  11. Remove the washer hose from the vehicle.
    G15092949Courtesy of TESLA, INC.
