- Press brake pedal to turn on drive rails.
 Courtesy of TESLA, INC.
|

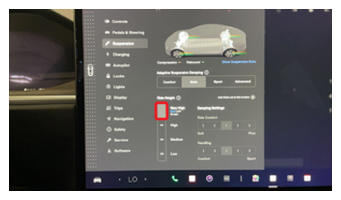

- Set air suspension ride height to "Very High".
NOTE:
Using center display > Controls > Suspension > "Very High".
 Courtesy of TESLA, INC.
|

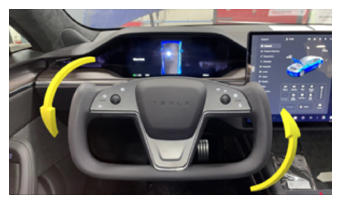

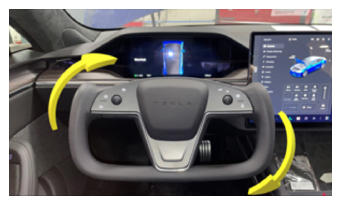

- Turn wheel fully to the right.
 Courtesy of TESLA, INC.
|

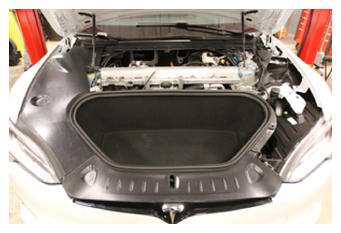

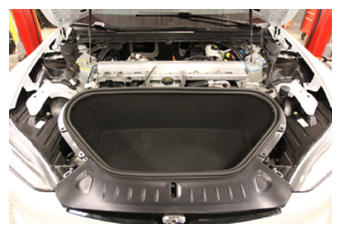

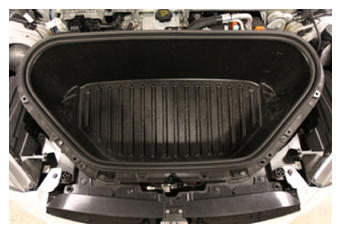

- Open hood.
NOTE:
Via Center Display > Controls > Frunk Open.

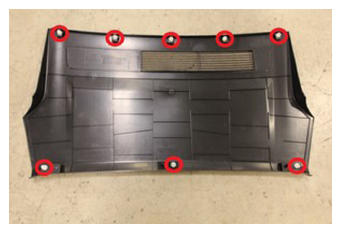

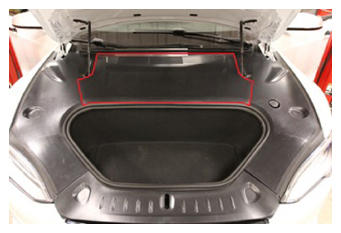

- Remove rear underhood apron.
NOTE:
8x clips.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

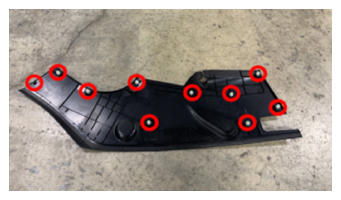

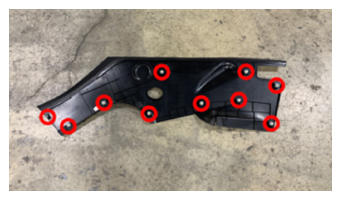

- Remove LH underhood apron.
NOTE:
10x clips.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove RH underhood apron.
NOTE:
10x clips.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove front underhood apron.
NOTE:
7x clips.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

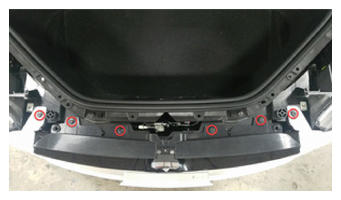

- Remove bolts securing fascia bracket to carrier.
NOTE:
6x bolts, 10 mm, 4 N.m.
 Courtesy of TESLA, INC.
|

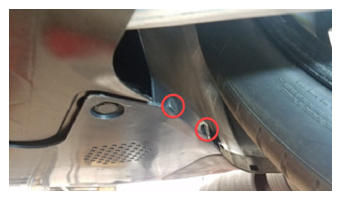

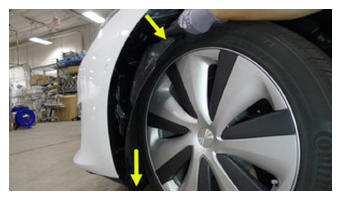

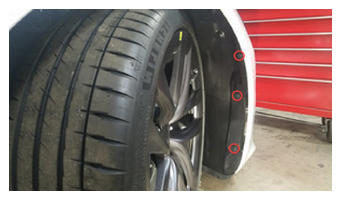

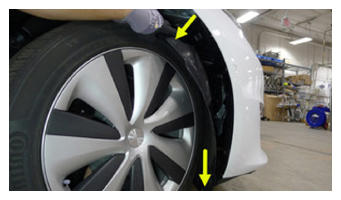

- Remove push clips securing LH front wheel arch liner to fascia and move to the side for access.
NOTE:
5x push clips, Shift bottom of liner down and flex top of liner against tire.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

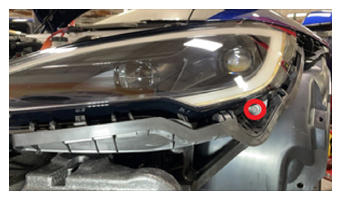

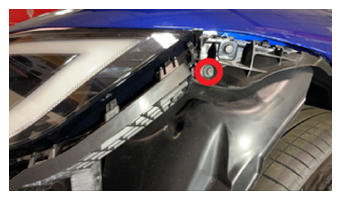

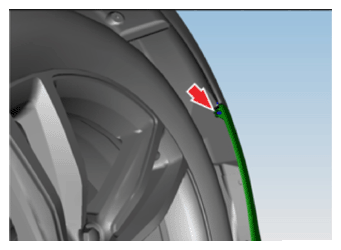

- Remove bolt securing front fascia to LH fender bracket.
NOTE:
1x bolt, T25, 5 N.m.
 Courtesy of TESLA, INC.
|
- Press brake pedal to turn on drive rails.
 Courtesy of TESLA, INC.
|
- Turn wheel fully to the left.
 Courtesy of TESLA, INC.
|

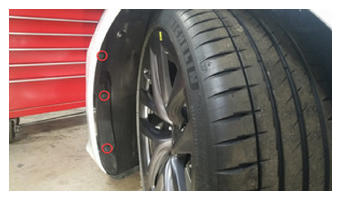

- Remove push clips securing RH front wheel arch liner to fascia and move to the side for access.
NOTE:
5x push clips, Shift bottom of liner down and flex top of liner against tire.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

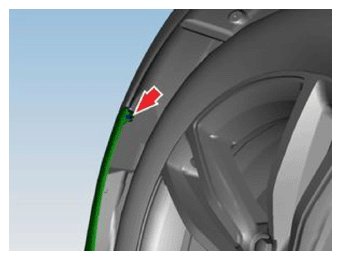

- Remove bolt securing front fascia to RH fender bracket.
NOTE:
1x bolt, T25, 5 N.m.
 Courtesy of TESLA, INC.
|

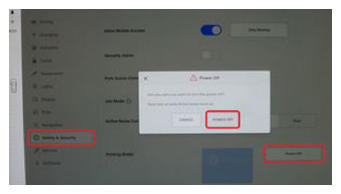

- Power off vehicle from center display.
NOTE:
Via Controls > Safety & Security > Power Off.
 Courtesy of TESLA, INC.
|

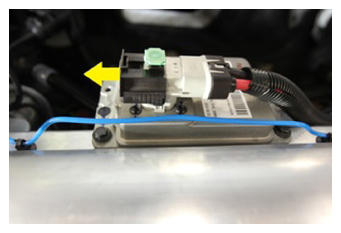

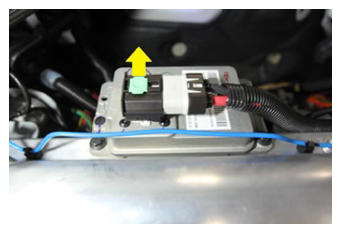

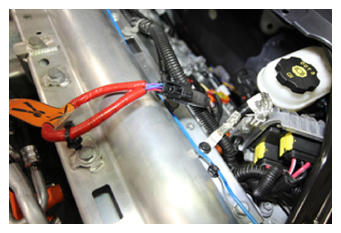

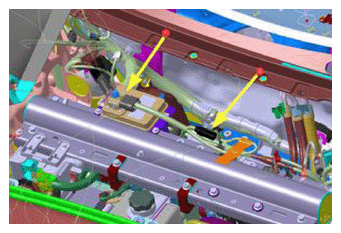

- Disconnect LV battery connector and First Responder Loop.
NOTE:
2x connectors, Lift up and release green locking tab, Pull black connector lock outwards to release connection.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

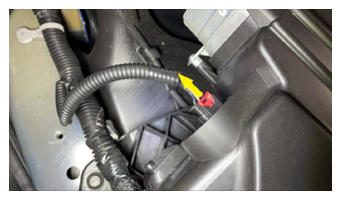

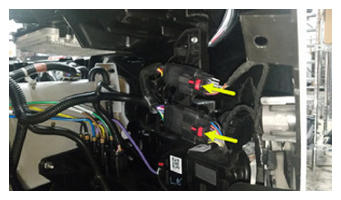

- Disconnect front fascia harness.
NOTE:
2x connectors, Pull red tab to disengage lock then disconnect, Located behind RH wheel arch liner.
 Courtesy of TESLA, INC.
|

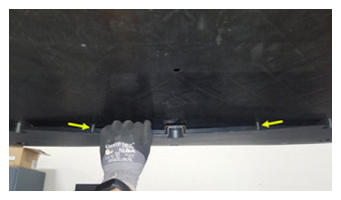

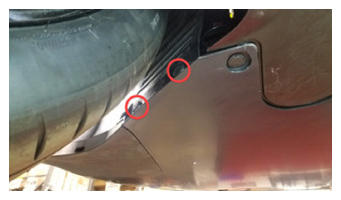

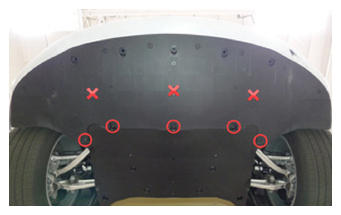

- Release front fascia valance from front aero shield.
NOTE:
3x bolts, 10 mm, 6 N.m, 2x clips, 2x datums, Do not remove 3x middle bolts.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

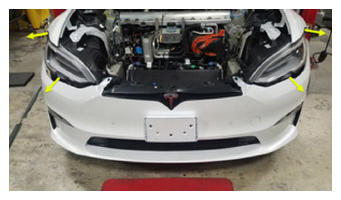

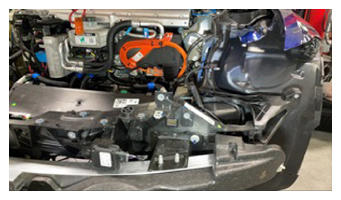

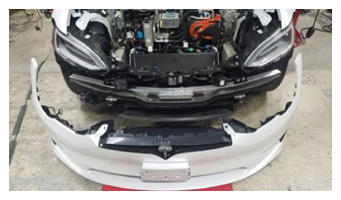

- Release fascia from fender brackets and pull forward to remove from vehicle.
NOTE:
Set fascia on protected surface, Recommend assistance.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

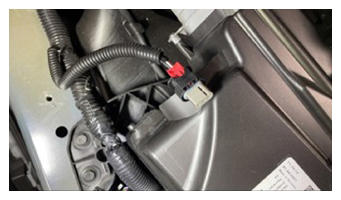

- Disconnect LH front headlamp.
NOTE:
1x connector, Disengage red locking tab and pull red tab outwards to release.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

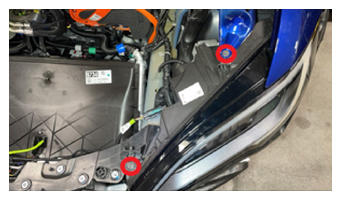

- Remove bolts securing LH headlamp to vehicle.
NOTE:
4x bolts, 10 mm, 5.9 N.m.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

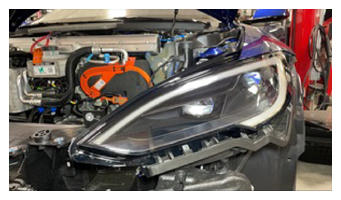

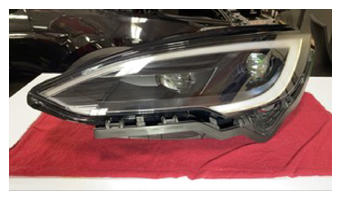

- Remove LH headlamp from vehicle.
NOTE:
Caution not to damage any components during removal.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
