Damper Wedge - Liftgate - LH - Remove And Replace: Install

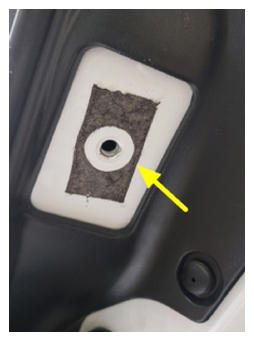

  1. Use IPA wipes to clean the double sided tape residue from the liftgate.
    NOTE: Allow 1 minute of dry time.
    G15079344Courtesy of TESLA, INC.
  2. Remove the backing from the double sided tape on LH liftgate damper wedge, position the damper wedge onto the liftgate, and then install the screw that attaches the damper wedge to the liftgate.

    Torque 12 N.m

    NOTE: Align the damper wedge to the screw insert.

    Tip: Use of the following tool(s) is recommended:

    • Torx T30 socket
    • Flex head ratchet/flex head torque wrench
    G15079345Courtesy of TESLA, INC.

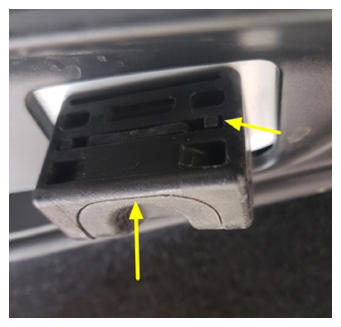

  3. Install the liftgate damper wedge cover.
    NOTE: The liftgate damper wedge cover is separate from liftgate damper wedge. If the cover tabs are broken during removal, order PN 1012174-00-A.
    G15079346Courtesy of TESLA, INC.
  4. Close the liftgate.
