Body Damper - Liftgate - LH - Remove And Replace: Install

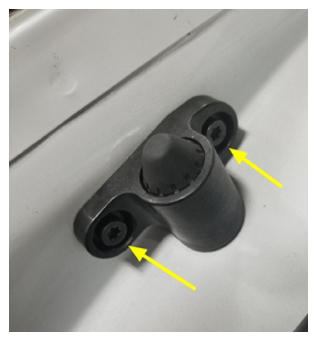

  1. Position the LH liftgate body damper onto the body, and then install the screws (x2) that attach the damper to the body.

    Torque 12 N.m

    Tip: Use of the following tool(s) is recommended:

    • Torx T30 socket
    • Stubby ratchet/stubby torque wrench
    G15079325Courtesy of TESLA, INC.

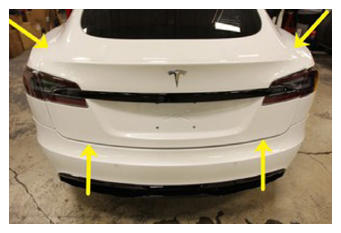

  2. Close the liftgate to check for gap/flushness.
    G15079326Courtesy of TESLA, INC.
  3. Adjust the LH liftgate body damper if necessary.
