Speaker - Pedestrian Warning - Remove And Replace: Install

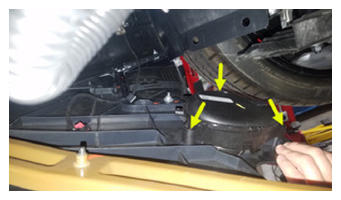

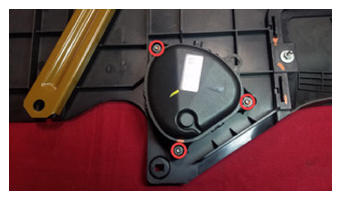

  1. Install the screws (x3) that attach the pedestrian warning speaker to the front fascia.
    NOTE: 3x screws, T25, 1.8 N.m
    G15093072Courtesy of TESLA, INC.
    G15093073Courtesy of TESLA, INC.

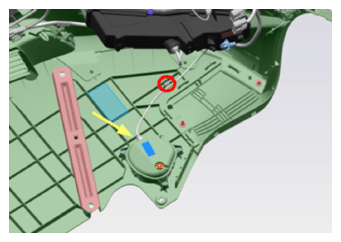

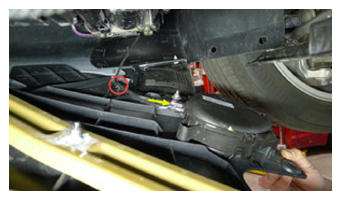

  2. Install the pedestrian warning speaker electrical harness.
    CAUTION: Push the red locking tab into the connector to engage the locking mechanism. DO NOT push down or pull up on the red locking tab.
    G15093074Courtesy of TESLA, INC.
    G15093075Courtesy of TESLA, INC.

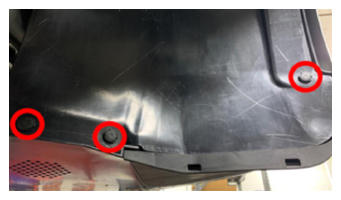

  3. Install the clips (x3) that attach the RH wheelhouse liner to the front fascia.
    G15093076Courtesy of TESLA, INC.
  4. Install the valance to the front aero shield. See Valance - Front Fascia (Remove and Replace) .
  5. Remove the vehicle from the lift.
