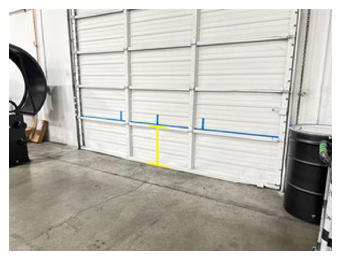

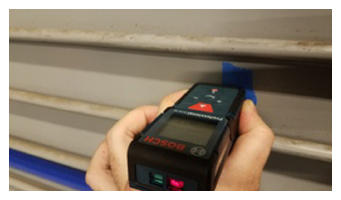

- Apply tape to wall 27.126 inches (68.9 cm) from the ground
 Courtesy of TESLA, INC.
|

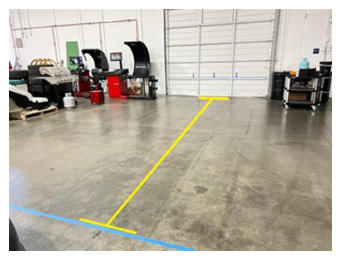

- Apply tape to floor 25 feet (7.6 m) from the wall
 Courtesy of TESLA, INC.
|

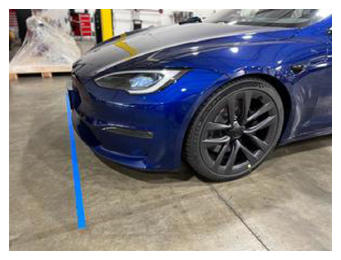

- Park vehicle on flat level surface perpendicular to wall and align front fascia with tape on floor
NOTE:
Choose a dark work area with low ambient lighting for best results, Ensure tire pressure is set to specification
 Courtesy of TESLA, INC.
|

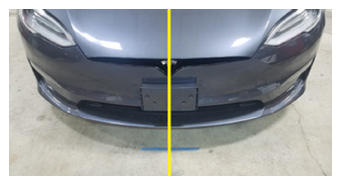

- Project a laser perpendicular to the wall onto the center point of the vehicle, then mark a center-line on the wall
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

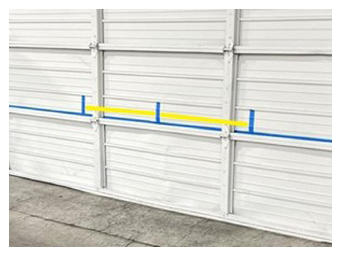

- Measure 78 cm from center and make a mark on both sides of the center-line
NOTE:
These reference marks will be the targets for horizontal adjustment
 Courtesy of TESLA, INC.
|
- Open LH front door
- Lower LH front window

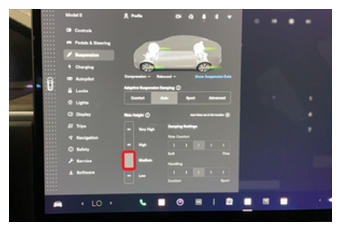

- Set air suspension ride height to "Medium"
NOTE:
Using center display, Controls > Suspension > "Medium", Re-select ride high setting to "Medium" to ensure leveling is complete
 Courtesy of TESLA, INC.
|

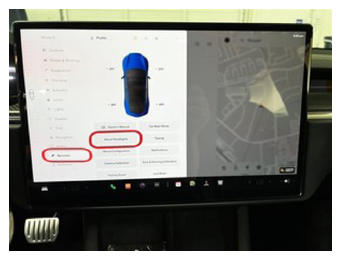

- Enter headlight adjustment mode through center display
NOTE:
via Controls > Service > Adjust Headlamps
 Courtesy of TESLA, INC.
|

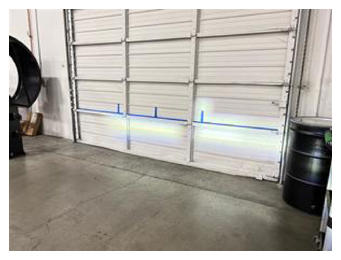

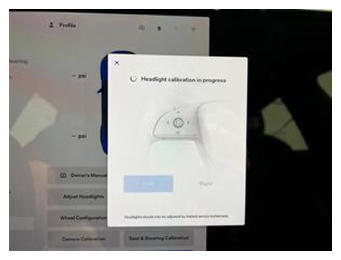

- Vehicle will automatically perform headlight calibration
 Courtesy of TESLA, INC.
|

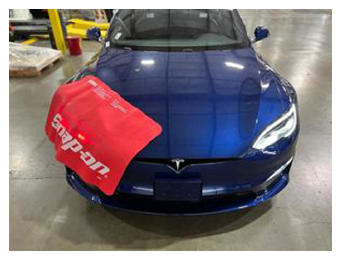

- Completely cover RH headlight
 Courtesy of TESLA, INC.
|

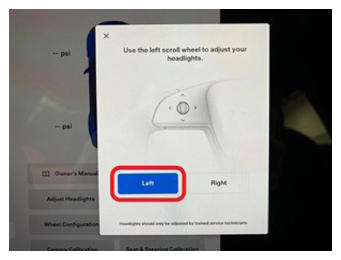

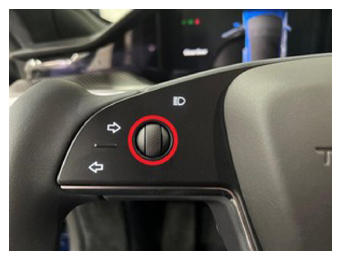

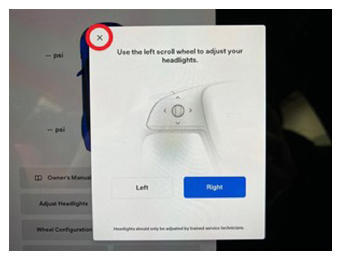

- Select "Left" then use left scroll wheel on the steering wheel to adjust the beam level
NOTE:

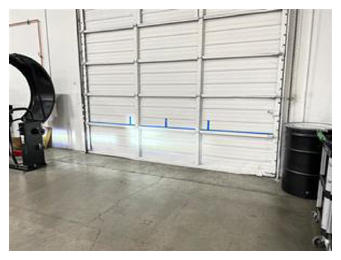

Adjust LH headlight so that top of horizontal beam aligns with tape mark on wall, and the left edge of the L-shaped beam aligns with LH reference tape, Do not sit in vehicle as this will affect headlamp height
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

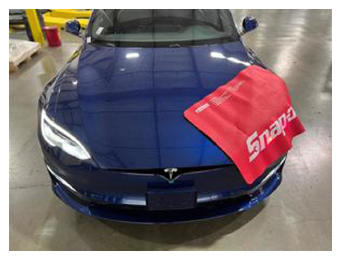

- Remove cover from RH headlight then completely cover LH headlight
 Courtesy of TESLA, INC.
|

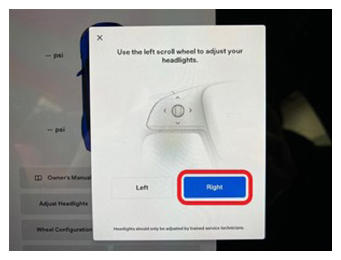

- Select "Right" then use left scroll wheel on the steering wheel to adjust the beam level
NOTE:
Adjust RH headlight so that top of horizontal beam aligns with tape mark on wall, and the left edge of the L-shaped beam aligns with RH reference tape, Do not sit in vehicle as this will affect headlamp height
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Exit headlight adjustment mode from the center display
NOTE:
Select "X" located at top left of display
 Courtesy of TESLA, INC.
|
- Remove cover from LH headlight
 Courtesy of TESLA, INC.
|
- Raise LH front window
- Close LH front door
