Camera - Rear Facing (HW4) - Remove and Replace: Remove
- Open the LH front door and lower the LH front window.
- Enable Service Mode. See Service Mode (Enable And Disable) .
- Partially open the liftgate.NOTE: Allow the liftgate to open fully, and then pull the liftgate back to a comfortable working height.

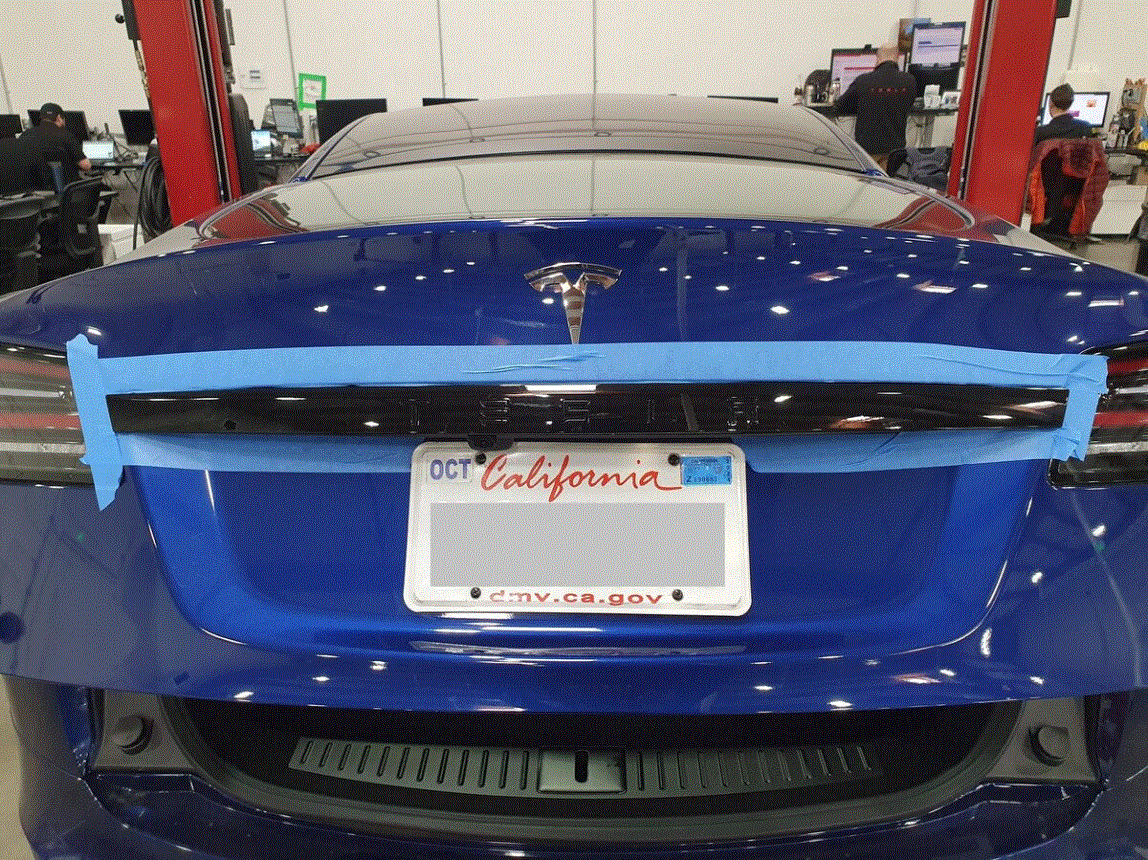

- Apply masking tape around the liftgate applique to protect the painted surrounding area.

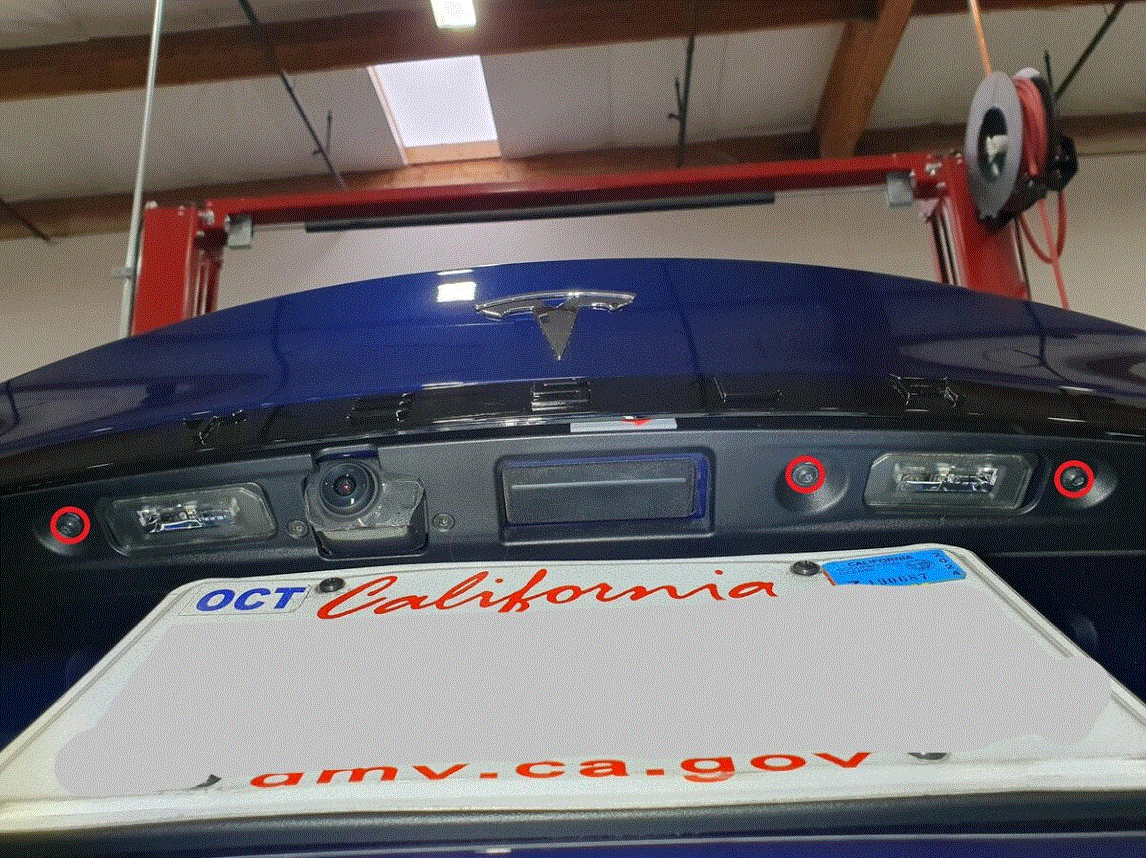

- Remove the bolts (x3) that attach the liftgate applique bracket to the liftgate.
2 Nm (1.5 lbs-ft)
Tip: Use of the following tool(s) is recommended:
- TP20 bit (Mini ratchet bit set - 1450424-00-A)

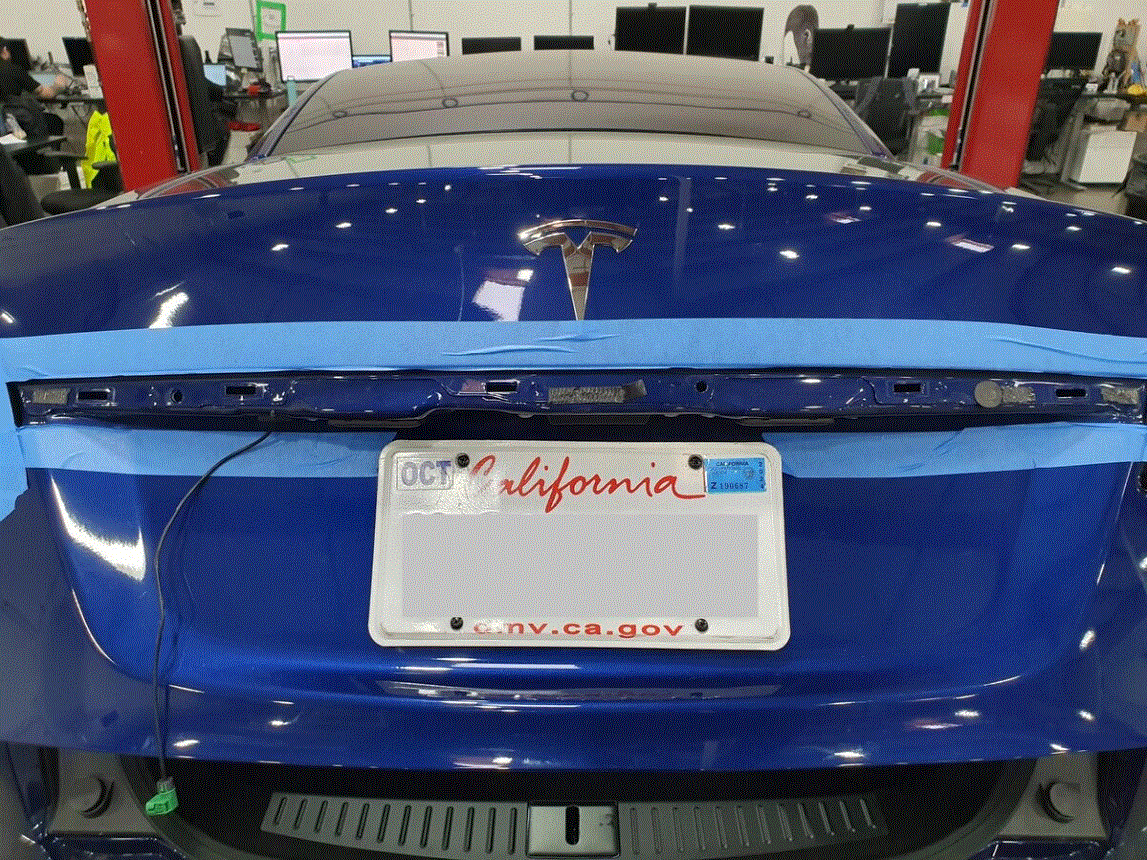

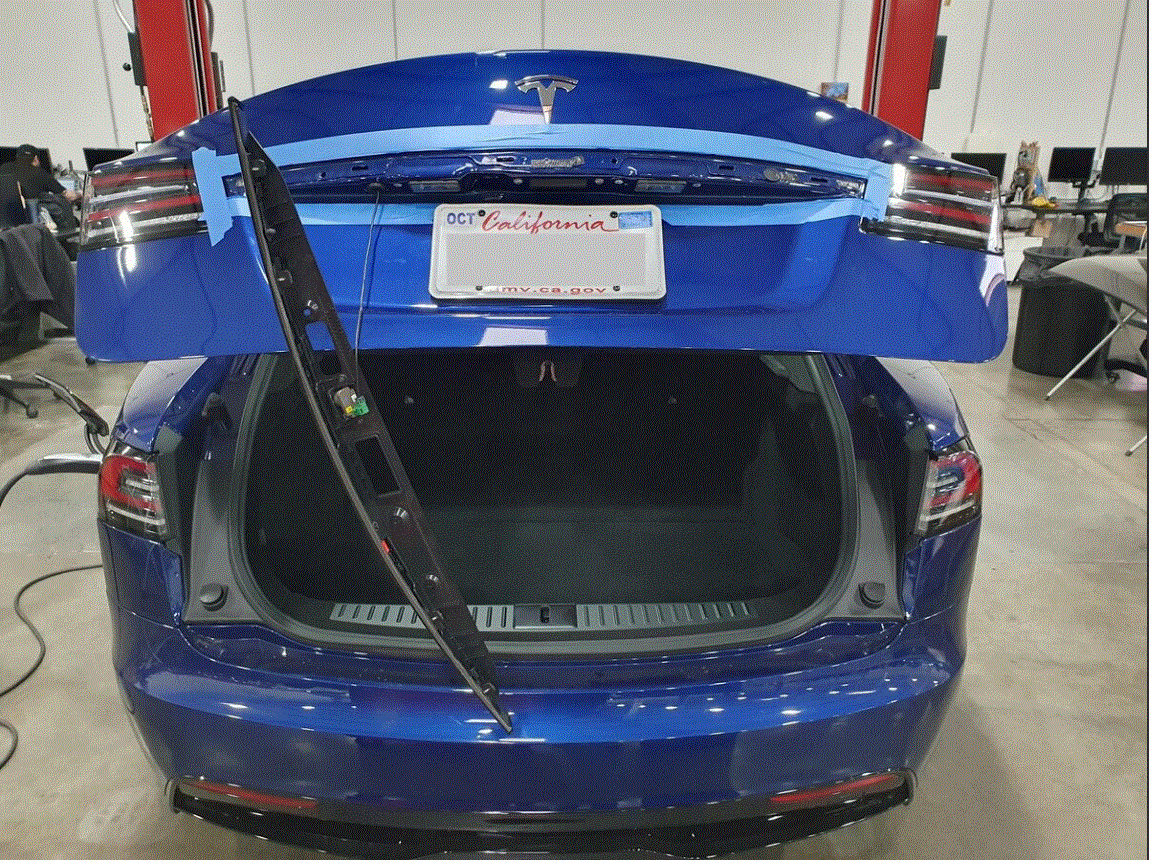

- Remove the liftgate applique bracket.NOTE: Pull the bracket using the handle opening rearwards until the tabs back off from the liftgate.
- Disconnect the rear facing camera electrical connector.NOTE: Push to lift the tab, and then disconnect the electrical connector.

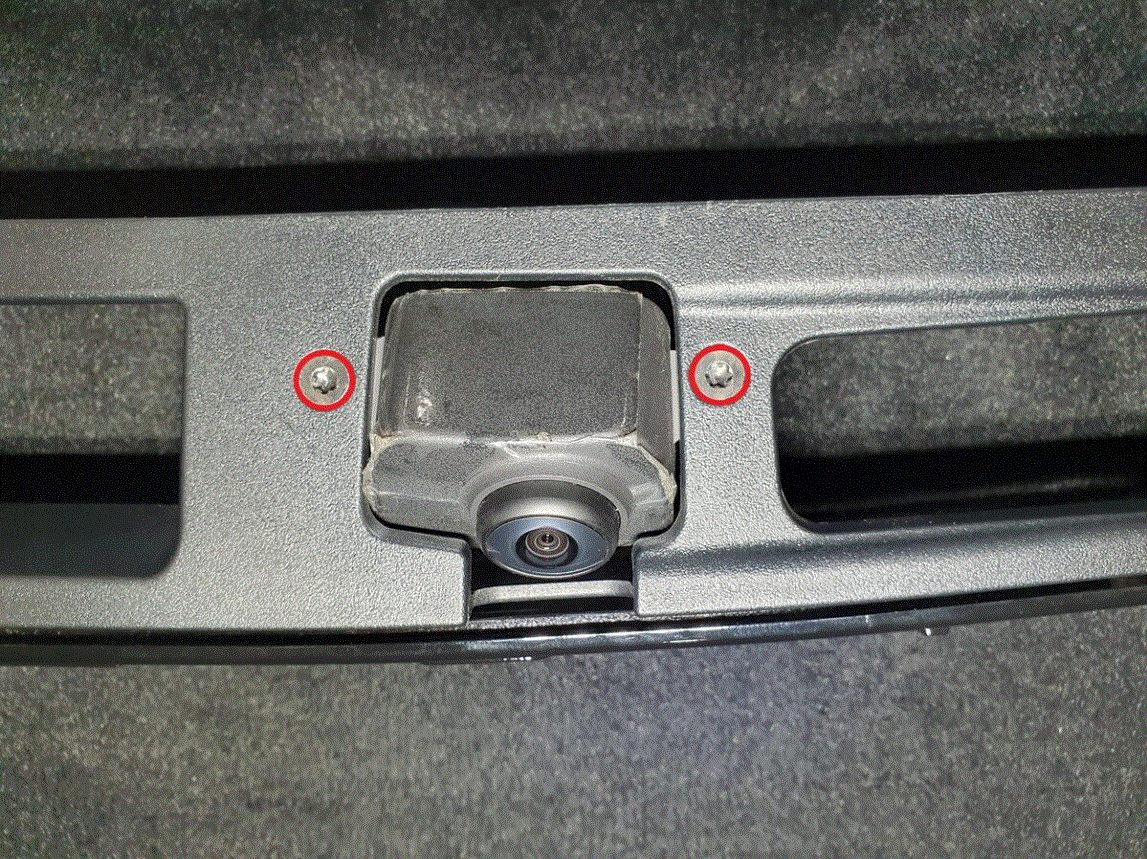

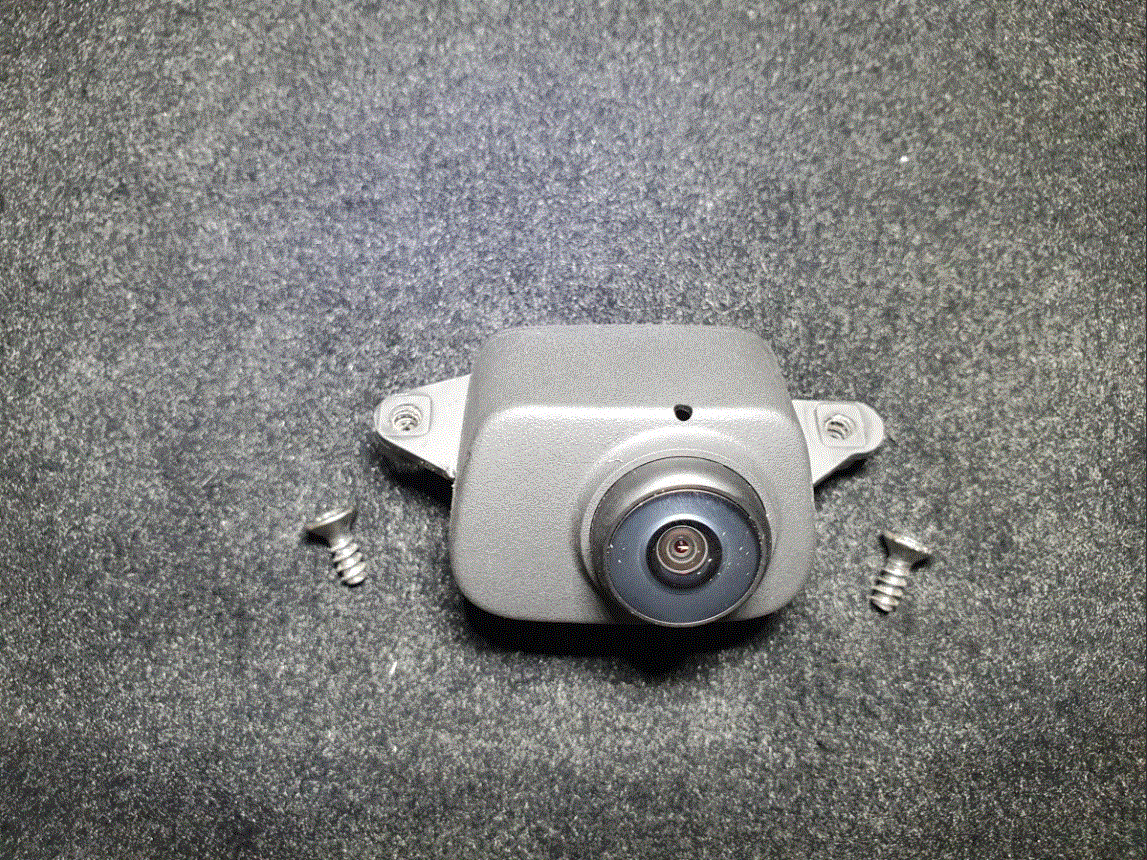

- Remove the bolts (x2) that attach the rear facing camera to the liftgate applique bracket, and then remove the camera from the bracket.
Tip: Use of the following tool(s) is recommended:
- TP20 bit (Mini ratchet bit set - 1450424-00-A)
