Sensor - Parking Distance - Inner - Front (HW3) - Remove And Replace: Remove

NOTE: This procedure is applicable to sensors S3 and S4.

Courtesy of TESLA, INC.

1. Disconnect LV Power. See LV Power (Disconnect And Connect) .
2. Remove the front fascia assembly. See Fascia Assembly - Front (Remove and Install) .

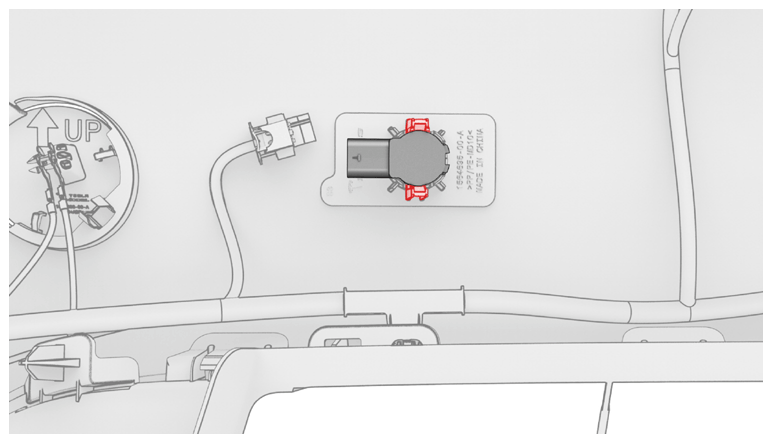

3. Disconnect the electrical harness from the parking distance sensor.
   CAUTION: DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.

   Courtesy of TESLA, INC.

4. Release the parking distance sensor from the front fascia assembly.

   Courtesy of TESLA, INC.
