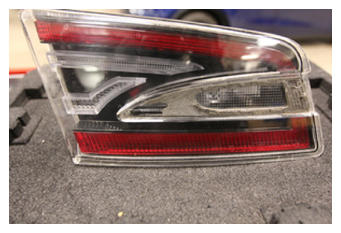

Light - Fog/Reverse - Rear - LH - Remove And Replace: Remove
- Remove the liftgate applique. See Applique - Liftgate (Remove and Replace) .
- Remove the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace) .

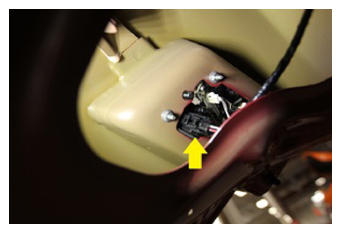

- Disconnect the LH rear fog/reverse light electrical connector.

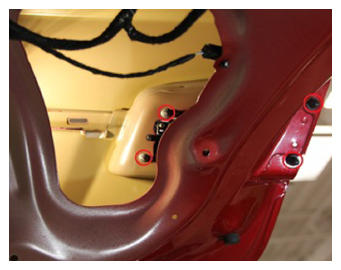

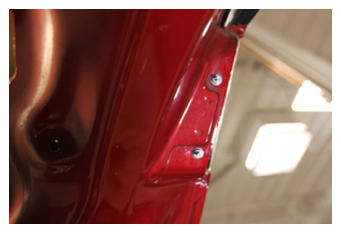

- Remove the rubber covers (x2), and then remove the nuts (x4) that attach the LH rear fog/reverse light to the liftgate.
4 N.m (2.9 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 8 mm socket
