Audio LHD - Wiring Diagram (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

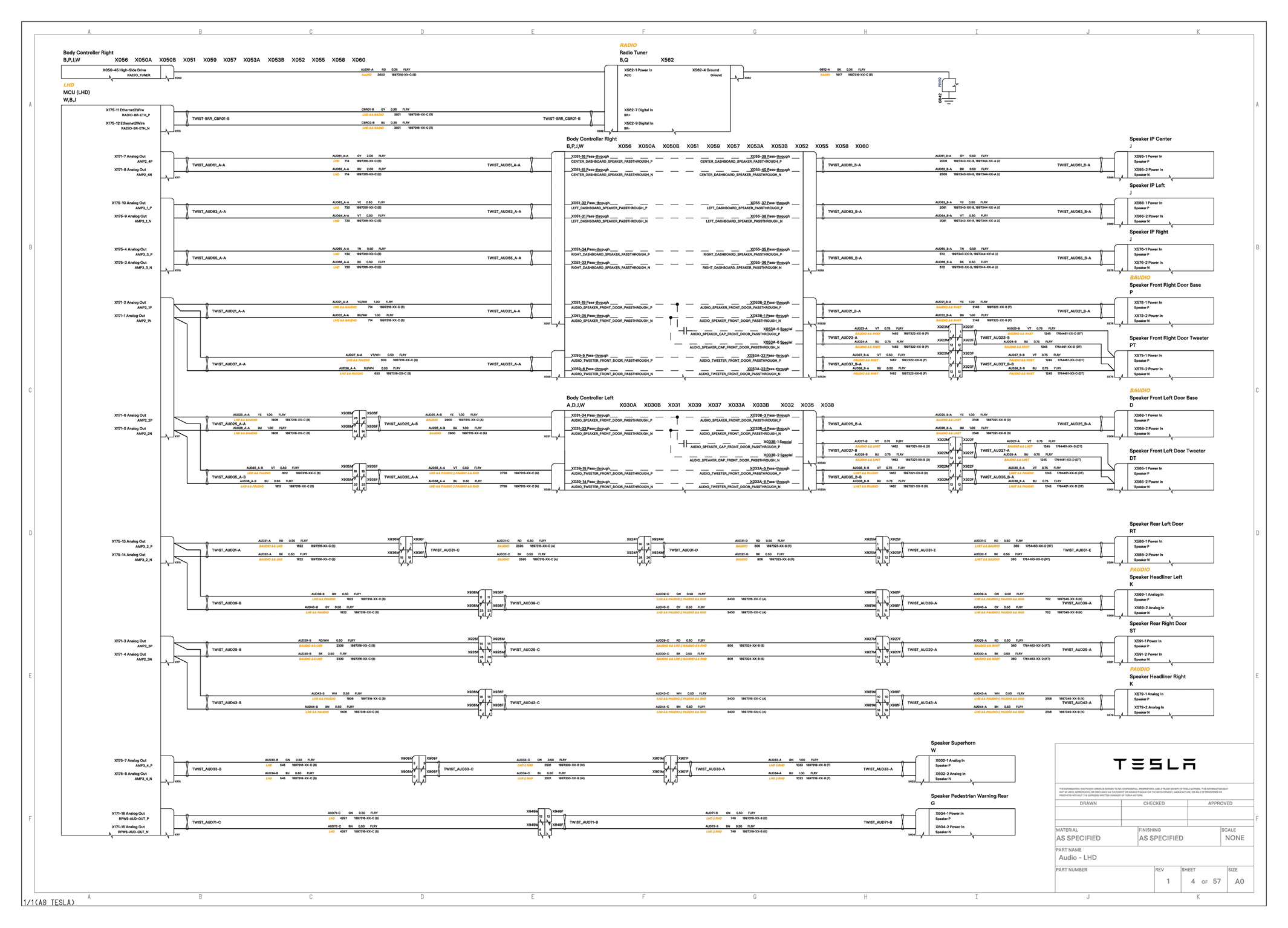

Fig 1: Audio LHD - Wiring Diagram (Fremont: 01/01/2024 - | Shanghai: 09/01/2023-)

G16612088

Courtesy of TESLA, INC.
