Connector End View - X860A (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1101044-01-B

Connector ROSENBERGER 99K20K-1D5A5-B

Color WT

Connector Location:

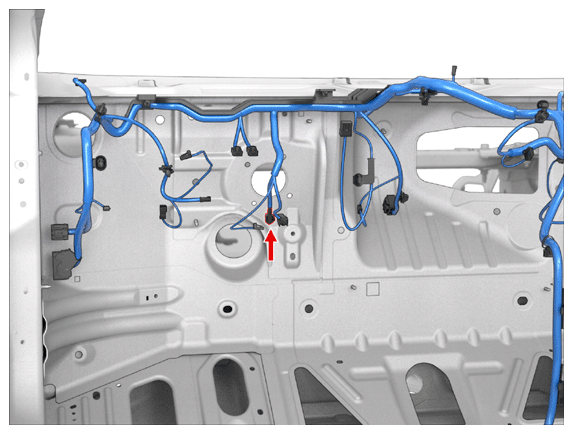

Fig 1: Connector Component Location - X860A (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X860A (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	5-963715-1	0.63x0.63F	RD	0.50	X861_1	1
2	AMP	5-963715-1	0.63x0.63F	BN	0.50	X861_1	2
H	TESLA	PIA-HSD-TERM		BK	Q1020	X861_1	H
