Connector End View - X613R (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1075477-00-B

Connector DELPHI 13597381

Color BN

Connector Location:

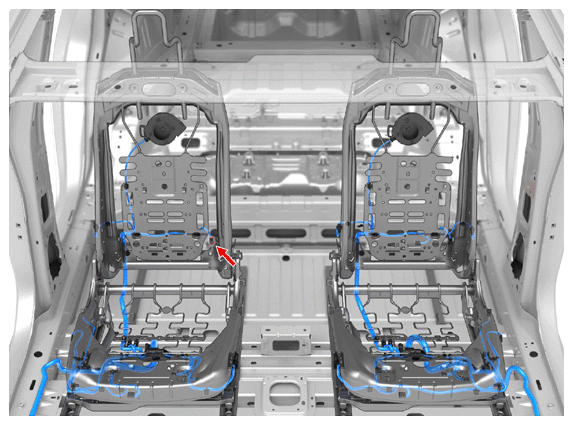

Fig 1: Connector Component Location - X613R (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X613R (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	968074-2	2.8x0.6F	GN	1.00	X052	30
2	AMP	5-928999-1	0.63x0.63F	TN	0.35	X052	5
3	AMP	968074-2	2.8x0.6F	BK	1.00	X052	29
4	AMP	5-928999-1	0.63x0.63F	BN	0.35
