Connector End View - X527 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1073280-00-A

Connector YAZAKI 7123-1424

Color NA

Connector Location:

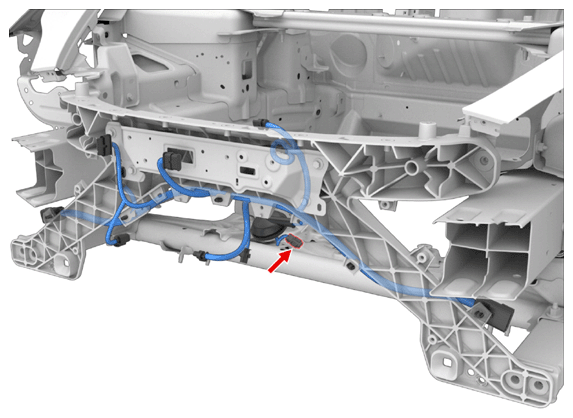

Fig 1: Connector Component Location - X527 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X527 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	YAZAKI	7116-1471	1.8x0.64FS	WH	0.50	YAZAKI	7157-7897-60	X905M	9
2	YAZAKI	7116-1471	1.8x0.64FS	BN	0.50	YAZAKI	7157-7897-60	X905M	10
