Connector End View - X518 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1496687-00-A

Connector DELPHI 35126363

Color GY

Connector Location:

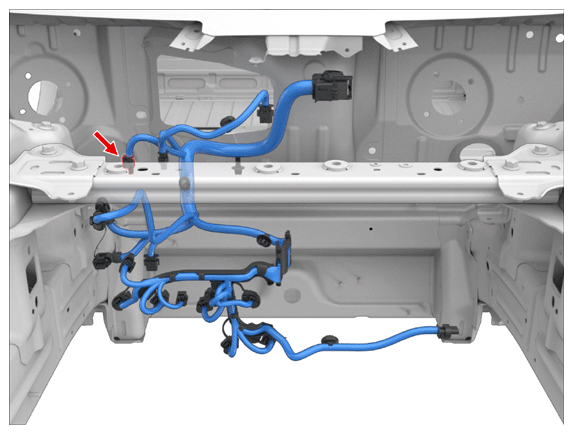

Fig 1: Connector Component Location - X518 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X518 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	7-1452668-1	1.2x0.6FS	YE	0.50	AMP	967067-1	X021	G1
2	AMP	7-1452668-1	1.2x0.6FS	RD	0.50	AMP	967067-1	X021	H1
