Connector End View - X490 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
Tesla Part Number 1821297-00-A
Connector AMP 2345104-1
Color BK

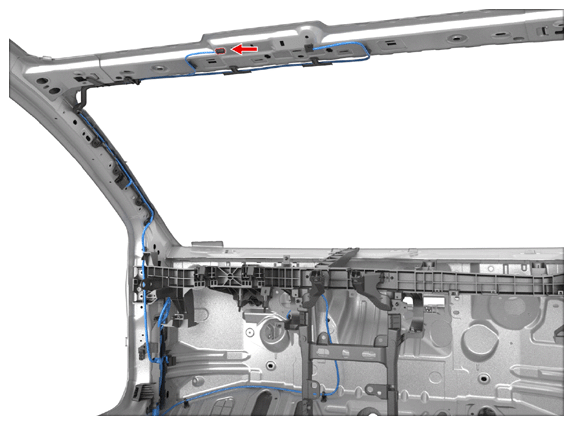

Connector Location:
Connector Pinout:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 2-1703930-1 | 0.50x0.40F | VT | 0.35 | X039 | 18 | ||
| 2 | AMP | 2-1703930-1 | 0.50x0.40F | YE | 0.35 | X030A | 21 | ||
| 3 | AMP | 2-1703930-1 | 0.50x0.40F | GY | 0.35 | X039 | 19 | ||
| 4 | AMP | 2-1703930-1 | 0.50x0.40F | BK | 0.35 | G031 | 7 |
