Connector End View - X477 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
Tesla Part Number 1103958-00-C
Connector TESLA 1103958-00-C
Color BK

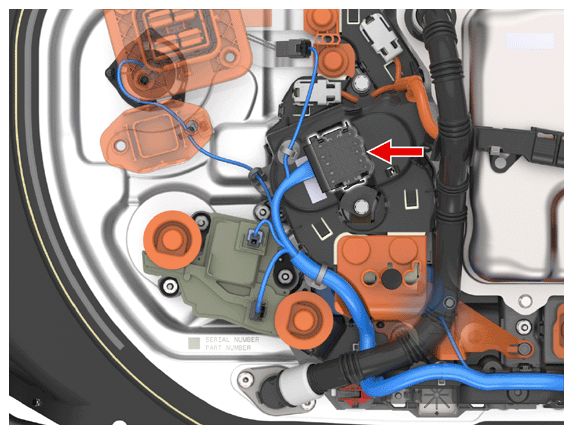

Connector Location:

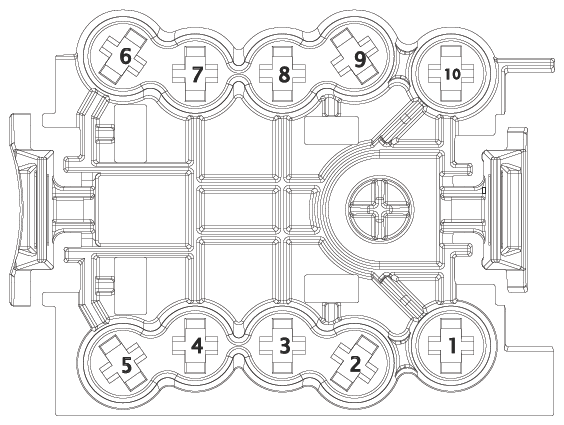

Connector Pinout:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | LEAR | 26700201185 | 2.8x0.8F | YE | 0.35 | X478 | 3 | ||
| 2 | LEAR | 26700201185 | 2.8x0.8F | RD | 0.35 | X479 | 18 | ||
| 3 | LEAR | 26701201185 | 2.8x0.8F | WH | 0.75 | X479 | 35 | ||
| 4 | LEAR | 26701201185 | 2.8x0.8F | RD | 0.75 | X479 | 36 | ||
| 5 | LEAR | 26700201185 | 2.8x0.8F | BN | 0.35 | X479 | 4 | ||
| 6 | LEAR | 26700201185 | 2.8x0.8F | WH | 0.35 | X479 | 17 | ||
| 7 | LEAR | 26701201185 | 2.8x0.8F | RD | 0.75 | X479 | 43 | ||
| 8 | LEAR | 26701201185 | 2.8x0.8F | YE | 0.75 | X479 | 37 | ||
| 9 | LEAR | 26700201185 | 2.8x0.8F | YE | 0.35 | X479 | 3 | ||
| 10 | LEAR | 26700201185 | 2.8x0.8F | BN | 0.35 | X481 | 4 |
