Connector End View - X425 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1496689-01-A

Connector DELPHI 35126376

Color BK

Connector Location:

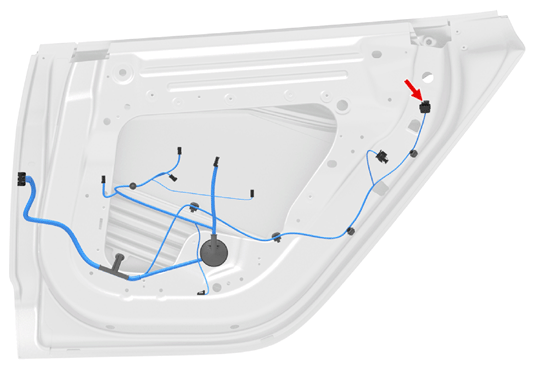

Fig 1: Connector Component Location - X425 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X425 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	7-1452665-1	1.2x0.6FS	BN	0.35	AMP	967067-2
2	AMP	7-1452665-1	1.2x0.6FS	BU	0.35	AMP	967067-2	X924M	11
3	unused
4	AMP	7-1452665-1	1.2x0.6FS	VT	0.35	AMP	967067-2	X924M	23
