Connector End View - X354 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
Tesla Part Number 1042590-00-A
Connector SUMITOMO 6098-5686
Color WH

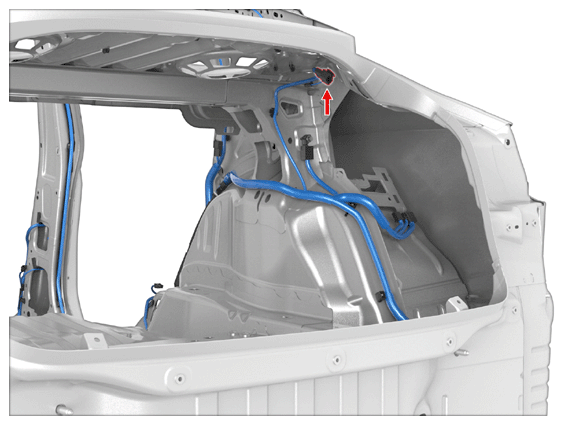

Connector Location:
Connector Pinout:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8230-4925 | 1.5x0.6M | WH | 0.35 | X059 | 16 | ||
| 2 | SUMITOMO | 8230-4925 | 1.5x0.6M | GY | 0.35 | X059 | 1 | ||
| 3 | SUMITOMO | 8230-4925 | 1.5x0.6M | RD | 0.35 | X059 | 2 | ||
| 4 | SUMITOMO | 8230-4925 | 1.5x0.6M | BN | 0.35 | X059 | 17 | ||
| 5 | SUMITOMO | 8230-4923 | 1.5x0.6M | VT | 2.00 | X050 | 63 | ||
| 6 | unused | ||||||||
| 7 | unused | ||||||||
| 8 | SUMITOMO | 8230-4923 | 1.5x0.6M | BU | 2.00 | X050 | 62 | ||
