Connector End View - X304A (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
Tesla Part Number 1693742-00-A
Connector MOLEX 33481-0301
Color BK

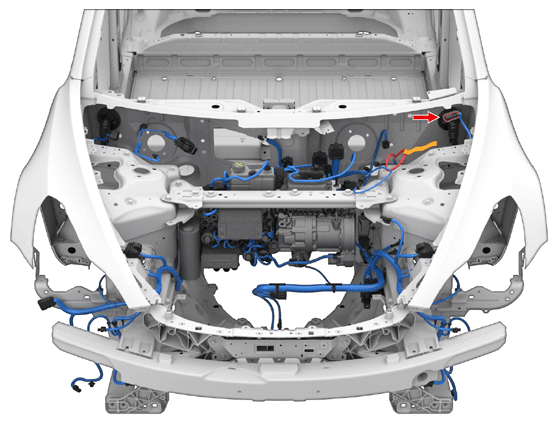

Connector Location:
Connector Pinout:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 33000-0002 | 1.5x0.8M | YE | 0.75 | TESLA | MAT-120-240 | X010 | 90 |
| 2 | MOLEX | 33000-0001 | 1.5x0.8M | BK | 1.50 | TESLA | MAT-120-240 | G011 | 9 |
| 3 | MOLEX | 33000-0001 | 1.5x0.8M | BU | 1.50 | TESLA | MAT-120-240 | X010 | 89 |
