Connector End View - X300 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1478980-00-A

Connector DELPHI 13601424

Color BK

Connector Location:

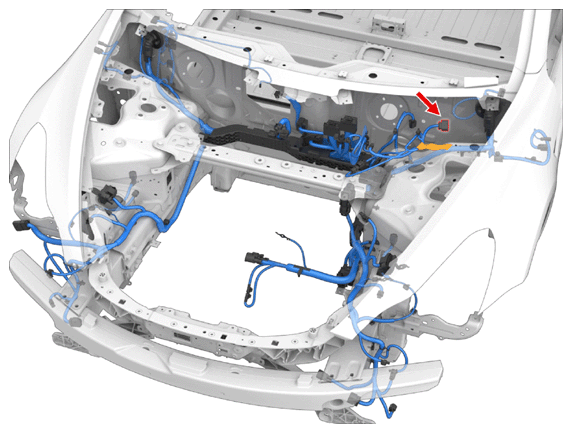

Fig 1: Connector Component Location - X300 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X300 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	964286-1	2.8x0.8FS	GN	0.50	DELPHI	15327860	X010	45
2	unused
3	AMP	964273-2	2.8x0.8FS	BK	2.50	DELPHI	15327859	G011	14
4	AMP	964273-2	2.8x0.8FS	VT	2.50	DELPHI	15327859	X012	3
