Connector End View - X296 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1679742-00-A

Connector DELPHI 35328464

Color BK

Connector Location:

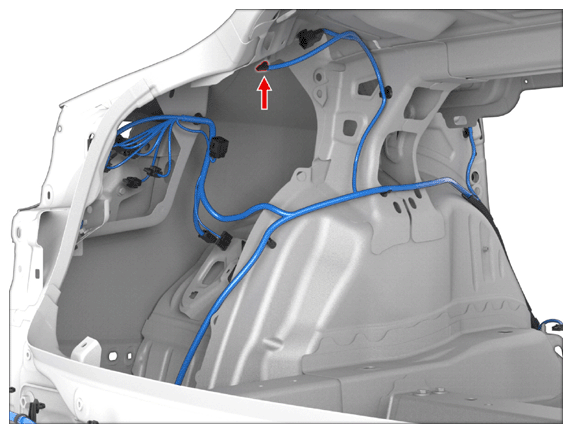

Fig 1: Connector Component Location - X296 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X296 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	13580633	0.64x0.64F	VT	0.35			X031	9
2	DELPHI	13580633	0.64x0.64F	BK	0.35			G041	8
