Connector End View - X284 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1509529-01-A

Connector MOLEX 560123-0400

Color WH

Connector Location:

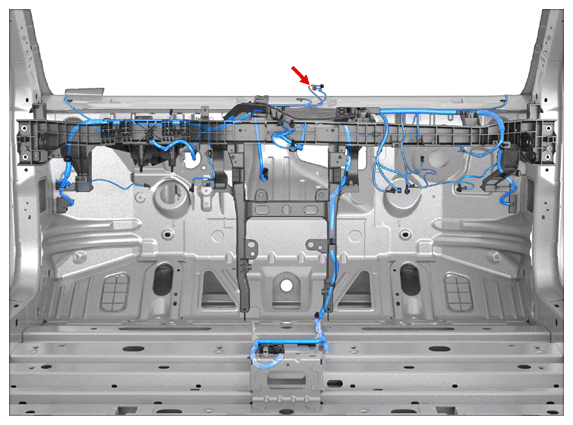

Fig 1: Connector Component Location - X284 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X284 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	560124-0101	0.5F	GY	0.35	X035	14
2	unused
3	MOLEX	560124-0101	0.5F	WH/GN	0.35	X283	2
4	MOLEX	560124-0101	0.5F	BN	0.35
