Connector End View - X279 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1015004-00-B

Connector DELPHI 13649797

Color BK

Connector Location:

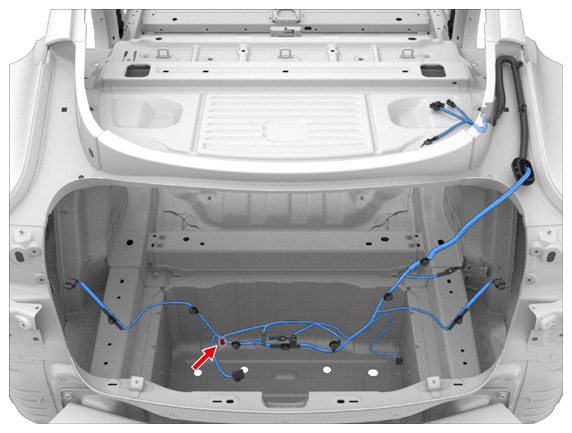

Fig 1: Connector Component Location - X279 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X279 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	13580633	0.64x0.64F	GY	0.35
2	DELPHI	13580635	0.64x0.64F	BK	0.50			G045	1
