Connector End View - X273 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number  1496689-00-A

Connector  DELPHI 35126375

Color  BK

Connector Location:

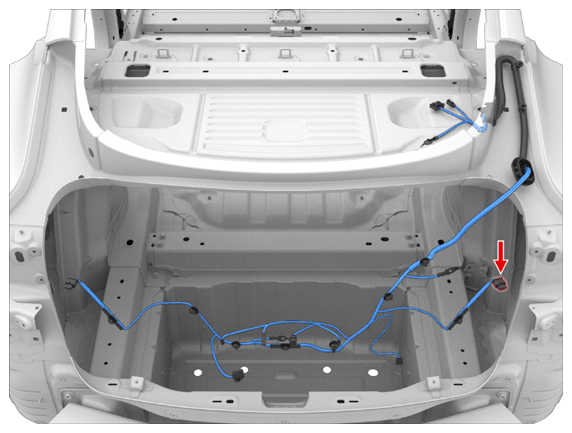

Fig 1: Connector Component Location - X273 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
G16610744Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X273 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
G16610745Courtesy of TESLA, INC.
CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 DELPHI 13959141 1.2x0.6FS BK 0.50 AMP 967067-1 G045 1
2 DELPHI 13959120 1.2x0.6FS YE/GN 0.35 DELPHI 13887349 X954F 14
3 DELPHI 13959120 1.2x0.6FS BU/WH 0.35 DELPHI 13887349 X954F 3
4 DELPHI 13959120 1.2x0.6FS RD/WH 0.35 DELPHI 13887349 X954F 15
