Rear Drive Inverter - Seal, Gearbox, Inverter, 3DU - Remove And Replace: Remove

  1. Remove the drive inverter assembly from vehicle. See REAR DRIVE INVERTER - ASSEMBLY, DRIVE INVERTER, 3DU, 810A, SIC, REAR - REMOVE AND REPLACE .
  2. Carefully place inverter on ESD safe mat.
    CAUTION: Do not place inverter facing downwards on the circuit board as it is fragile.

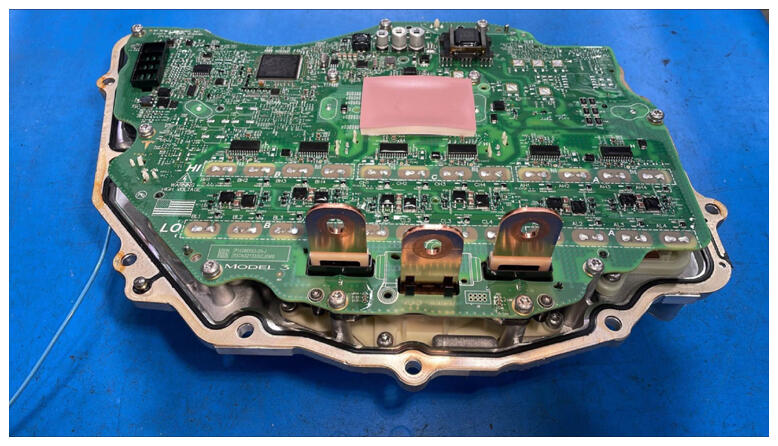

    G16605086Courtesy of TESLA, INC.
  3. Remove seal from drive inverter.

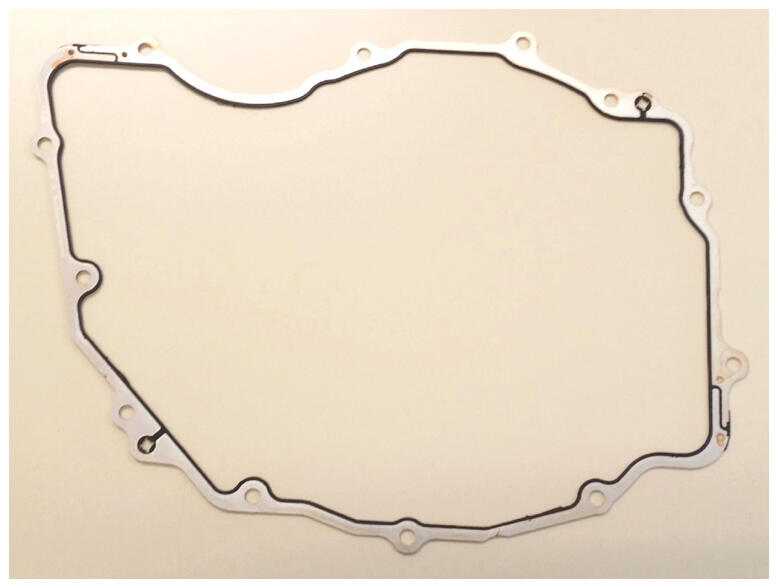

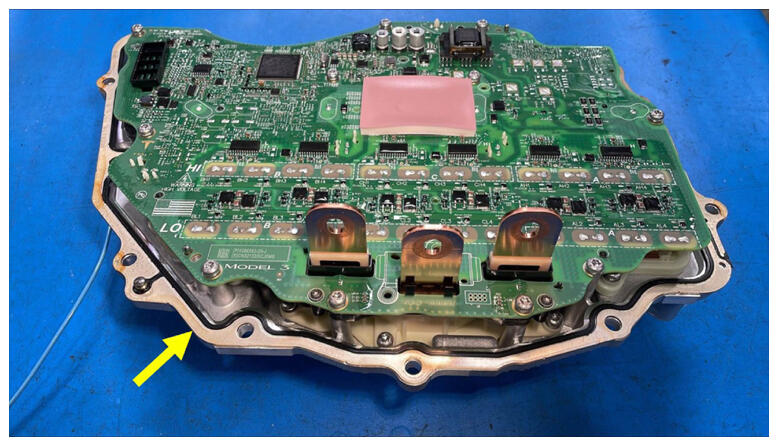

    G16605087Courtesy of TESLA, INC.
    G16605088Courtesy of TESLA, INC.
