Rear Drive Inverter - Seal, Gearbox, Inverter, 3DU - Remove And Replace: Install

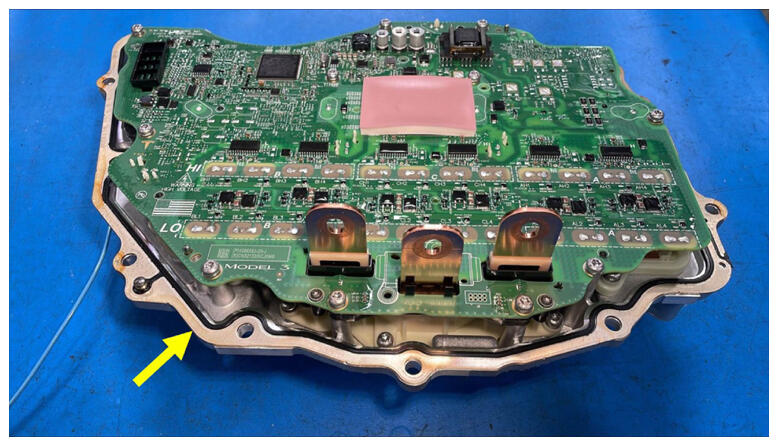

  1. Install the seal to drive inverter.
    G16605089Courtesy of TESLA, INC.
  2. Install the drive inverter assembly to vehicle. See REAR DRIVE INVERTER - ASSEMBLY, DRIVE INVERTER, 3DU, 810A, SIC, REAR - REMOVE AND REPLACE .
