Brake Lines - Pipe Assembly, Brake Master Cylinder To HCU, LHD - Remove And Replace: Notes

Last modified: 17/10/2023 18:56:14

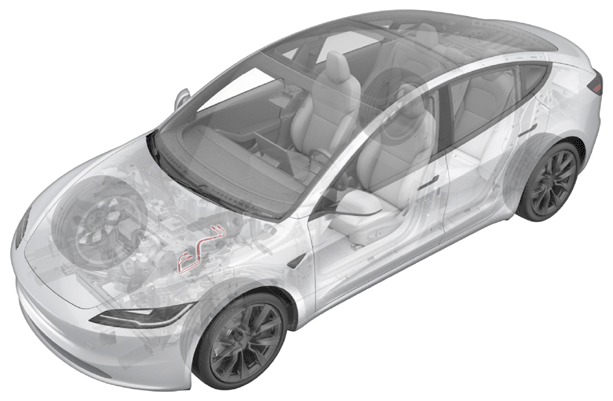

Fig 1: Master Cylinder To HCU Brake Lines Assembly Component Location (LHD)

Courtesy of TESLA, INC.

NOTE: See PERSONAL PROTECTION to make sure wearing proper PPE when performing the below procedure.

TORQUE SPECIFICATIONS - BRAKE LINES - PIPE ASSEMBLY, BRAKE MASTER CYLINDER TO HCU, LHD (REMOVE AND REPLACE)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Nuts that attach the forward and rear brake line to the brake booster	16 N.m (11.8 lbs-ft)	12 mm 12 pt combination wrench 1/4 in to 3/8 in adapter 12 mm socket Ratchet/torque wrench	Reuse
Master cylinder secondary pipe nut and primary pipe nut	16 N.m (11.8 lbs-ft)	12 mm socket 1/4 in to 3/8 in adapter 6 in extension Ratchet/torque wrench	Reuse
