Brake Lines - Pipe Assembly R, Rear Brake - Remove And Replace: Remove
- Raise and support the vehicle. See RAISE VEHICLE - 2 STANDS .
- Remove all the four wheels. See WHEEL ASSEMBLY - REMOVE AND INSTALL .
- Remove the rear subframe assembly. See CHASSIS - CHASSIS AND SUBFRAMES - REAR SUBFRAME - REAR SUBFRAME ASSEMBLY - REMOVE AND REPLACE .
- Remove the LH rear wheel arch liner. See WHEEL ARCH LINERS - REAR WHEEL LINER, LH - REMOVE AND REPLACE .
- Place an oil drain pan under the brake line junction box.

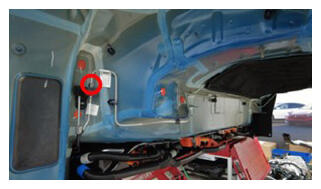

- Remove the RH rear brake line tube nut from the rear brake pipe junction block.
Tip: Use of the following tool(s) is recommended:
- 12 mm socket
- Ratchet/torque wrench
- 1/4 in to 3/8 in adapter
- Place the oil drain pan under the RH rear brake hose junction to caliper.

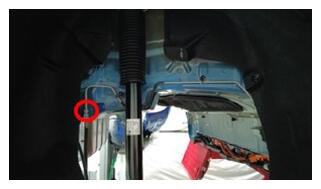

- Remove the RH rear brake line tube nut from the RH rear brake hose.
Tip: Use of the following tool(s) is recommended:
- Ratchet/torque wrench
- Flex head ratchet/flex head torque wrench
- Remove the oil drain pan from underneath the vehicle.

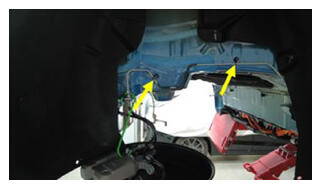

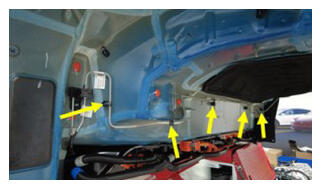

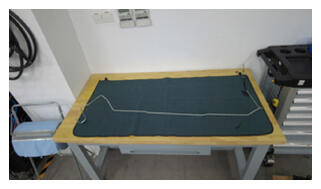

- Release the clips (x7), and then remove the RH rear brake line from the vehicle.
