Brake Lines - Pipe Assembly L, Rear Brake - Remove And Install: Install

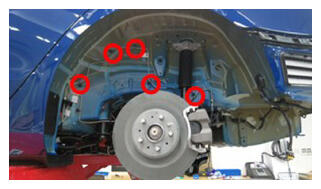

Install the brake line to the body, and then fasten the clips (x5) that attach the brake line to the body.
NOTE: No bending of the brake line is allowed.

Courtesy of TESLA, INC.

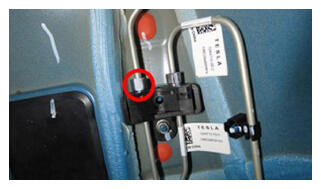

Install the LH rear brake line tube nut to the LH rear brake pipe junction block.
16 N.m (11.8 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- 3 in extension
- Ratchet/torque wrench
- 12 mm socket
Courtesy of TESLA, INC.

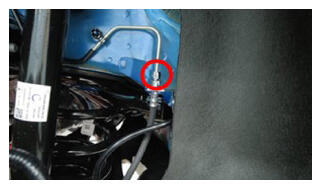

Install the brake line tube nut to the brake hose at the jounce hose bracket.
16 N.m (11.8 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- 3 in extension
- Ratchet/torque wrench
- 12 mm socket
Courtesy of TESLA, INC.
Remove the oil drain from under the vehicle.
Install the LH rear wheel arch liner. See WHEEL ARCH LINERS - REAR WHEEL LINER, LH - REMOVE AND REPLACE .
Perform a brake fluid flush on the brakes. See BRAKE FLUID BLEED/FLUSH (MAINTENANCE) .
