Front Brake Rotors - Calipers And Pads - Front Brake Caliper Sport - RH - Remove And Replace: Remove

Place the vehicle on the 2-post lift.
Tip: Ensure the vehicle is not charging.
Open the LH front door and lower the LH front window.
Remove the rear underhood apron. See UNDERHOOD TRIM - REAR APRON ASSEMBLY - REMOVE AND REPLACE .
Remove the RH front wheel. See WHEEL ASSEMBLY - REMOVE AND INSTALL .
Position an oil drain receiver under the RH front brake hose area.

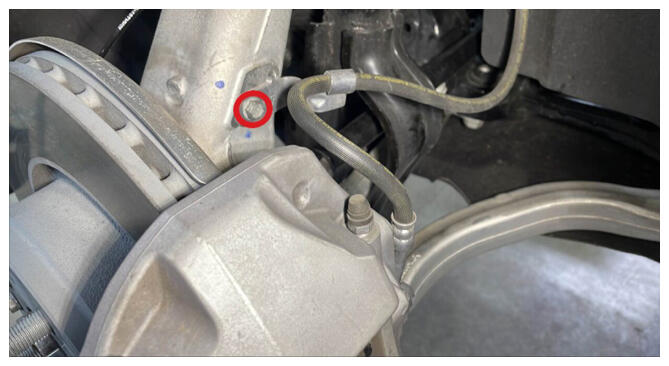

Release the bolt that attaches the RH front brake hose bracket to the knuckle.
Tip: Use of the following tool(s) is recommended:
- Ratchet/torque wrench
- 4 in extension
- 10 mm socket
NOTE: LH Shown. RH Similar

Courtesy of TESLA, INC.

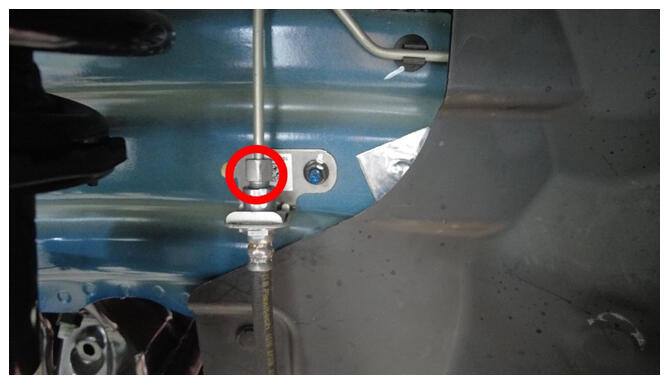

Remove the nut that attaches the RH front brake line to the RH front brake hose.
Tip: Use of the following tool(s) is recommended:
- 1/4 in to 3/8 in adapter
- Ratchet/torque wrench
- 12 mm socket
NOTE: LH Shown. RH Similar

Courtesy of TESLA, INC.

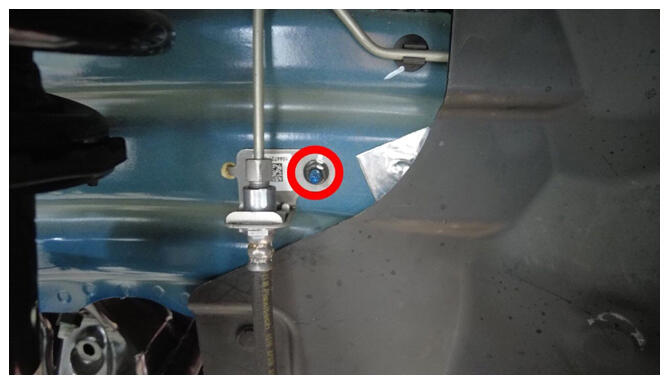

Remove the nut that attaches the RH front brake hose to body.
Tip: Use of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- 10 mm deep socket
- Ratchet/torque wrench
NOTE: LH Shown. RH Similar

Courtesy of TESLA, INC.

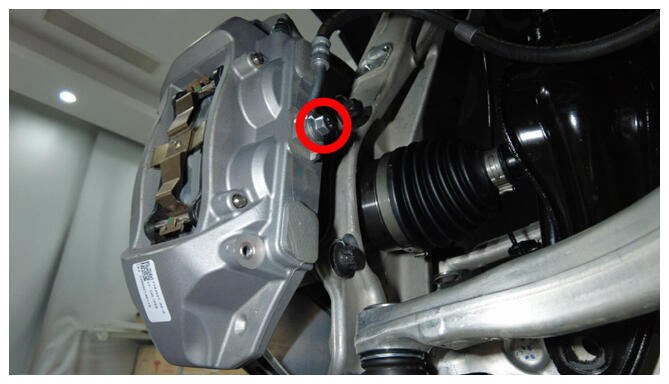

Remove and discard the bolt that attaches the RH front brake hose to the RH front brake caliper.
Tip: Use of the following tool(s) is recommended:
- 11 mm deep socket
- Ratchet/torque wrench
Courtesy of TESLA, INC.

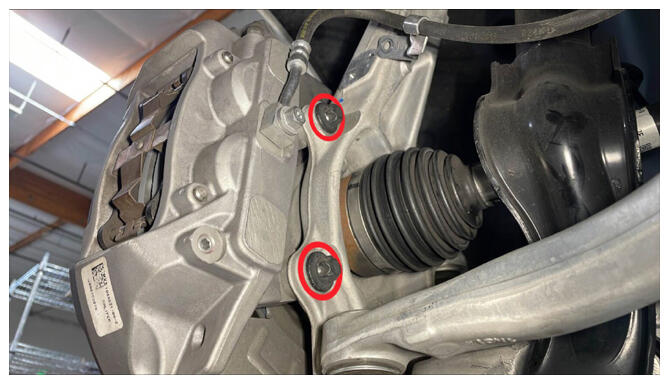

Remove and discard the bolts (x2) that attach the RH front brake caliper to the RH front knuckle, and then remove the front brake caliper.
Tip: Use of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- 3/8 in to 1/2 in adapter
- External Torx E18
- Breaker bar
- Ratchet/torque wrench
NOTE: LH Shown. RH Similar

Courtesy of TESLA, INC.
