Front Brake Rotors - Calipers And Pads - Front Brake Caliper Sport - LH - Remove And Replace: Install

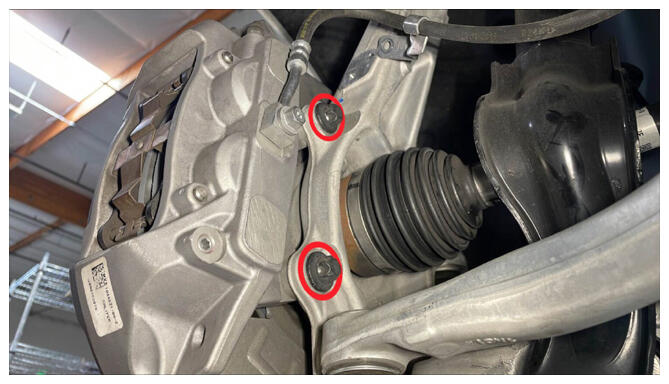

- Install new bolts (x2) (1088969-00-B) that attach the LH front brake caliper to the LH front knuckle.
94 N.m (69.3 lbs-ft)
NOTE: Mark with a paint pen. If used, remove the S-hook from the vehicle.Tip: Use of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- 3/8 in to 1/2 in adapter
- External Torx E18
- Breaker bar
- Ratchet/torque wrench

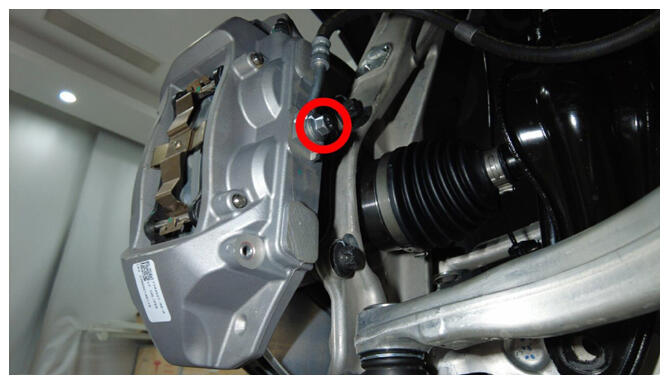

- Install the bolt that attaches the new LH front brake hose to the LH front brake caliper.
Tip: Use of the following tool(s) is recommended:
- 11 mm deep socket
- Ratchet/torque wrench

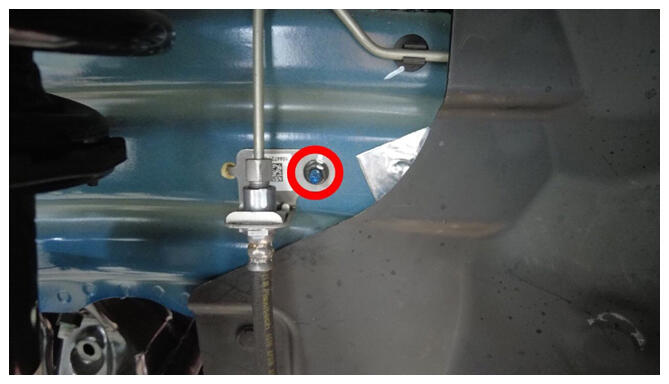

- Install the nut that attaches the LH front brake hose to body.
Tip: Use of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- 10 mm deep socket
- Ratchet/torque wrench

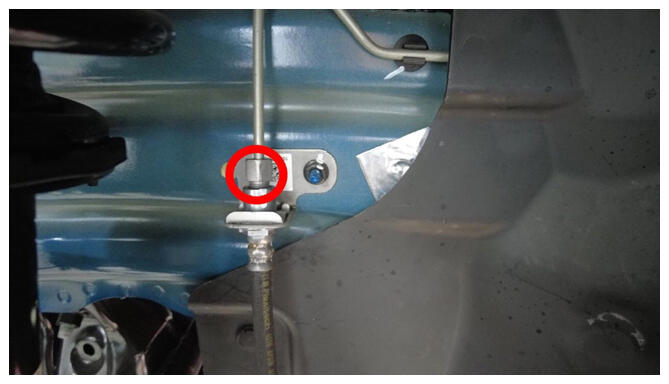

- Install the nut that attaches the LH front brake line to the LH front brake hose.
Tip: Use of the following tool(s) is recommended:
- 1/4 in to 3/8 in adapter
- Ratchet/torque wrench
- 12 mm socket

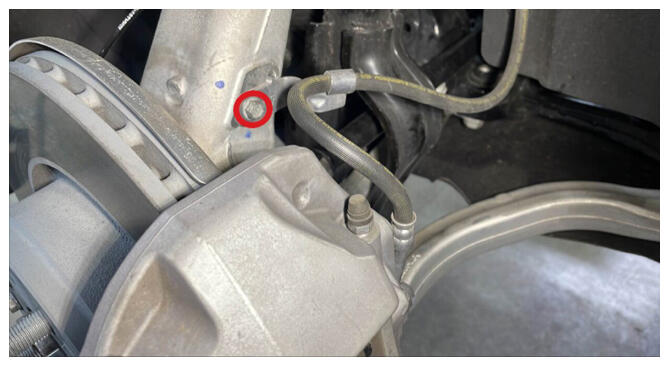

- Install the bolt that attaches the LH front brake hose bracket to the knuckle.
Tip: Use of the following tool(s) is recommended:
- Ratchet/torque wrench
- 4 in extension
- 10 mm socket
- Remove the oil drain receiver from underneath the vehicle.
- Bleed the LH front caliper. See BRAKE FLUID BLEED - ONE CALIPER - REMOVE AND REPLACE .
- Install the LH front wheel. See WHEEL ASSEMBLY - REMOVE AND INSTALL .
- Install the rear underhood apron. See UNDERHOOD TRIM - REAR APRON ASSEMBLY - REMOVE AND REPLACE .
- Raise the LH front window and close the LH front door.
- Remove the lift arms from below the vehicle.
- Perform a road test and burnish the brakes.
- Perform one
of the following:
- If the brake pads were not replaced in this procedure, perform a road test using a series of aggressive stops and make sure that there is proper brake pedal feel and brake performance.NOTE: Add test drive correction code 00040100 as a separate activity to the Service Visit.
- If the brake pads were replaced in this procedure, perform the brake pad burnishing procedure. See BRAKE PADS - BURNISHING .NOTE: Add the correction code for brake pad burnishing 33013000 as a separate activity to the Service Visit.
- If the brake pads were not replaced in this procedure, perform a road test using a series of aggressive stops and make sure that there is proper brake pedal feel and brake performance.
