Park Brake Caliper - Caliper Seized - Release: Procedure
- Remove the LH rear wheel. See WHEEL ASSEMBLY - REMOVE AND INSTALL
.

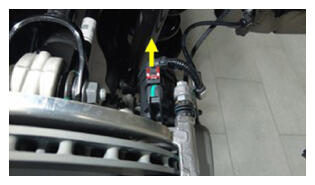

- Disconnect the LH rear EPB caliper connector.
 Courtesy of TESLA, INC.
|

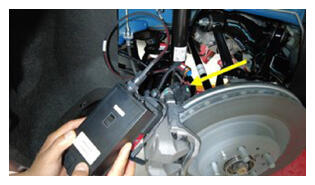

- Connect the electronic parking brake release tool to the LH rear EPB caliper connector.
 Courtesy of TESLA, INC.
|

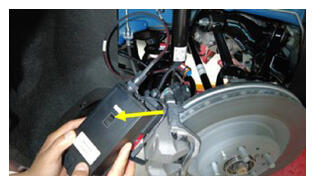

- Press the release button in the electronic parking brake release tool to release the LH rear parking brake.
 Courtesy of TESLA, INC.
|
- Disconnect the electronic parking brake release tool from the LH rear EPB caliper connector.
 Courtesy of TESLA, INC.
|
- Connect the LH rear EPB caliper connector.
 Courtesy of TESLA, INC.
|
- Install the LH rear wheel. See WHEEL ASSEMBLY - REMOVE AND INSTALL
.
