Brake Lines - Pipe Assembly L, Rear Brake - Remove And Install: Remove
- Raise and support the vehicle. See RAISE VEHICLE - 2 STANDS .
- Remove the rear underhood apron. See UNDERHOOD TRIM - REAR APRON ASSEMBLY - REMOVE AND REPLACE .
- Remove all four wheels. See WHEEL ASSEMBLY - REMOVE AND INSTALL .
- Remove the LH rear wheel arch liner. See WHEEL ARCH LINERS - REAR WHEEL LINER, LH - REMOVE AND REPLACE .
- Position the oil drain under the rear brake line junction block.

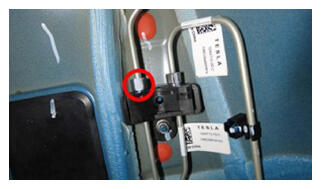

- Remove the LH rear brake line tube nut from the LH rear brake pipe junction block.
Tip: Use of the following tool(s) is recommended:
- 3 in extension
- Ratchet/torque wrench
- 12 mm socket
- Position the oil drain under the rear LH brake hose.

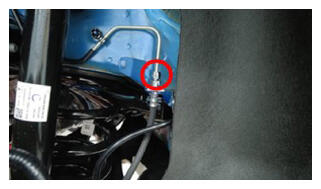

- Remove the brake line tube nut from the brake hose at the jounce hose bracket. Allow the fluid to drain.
Tip: Use of the following tool(s) is recommended:
- 3 in extension
- Ratchet/torque wrench
- 12 mm socket

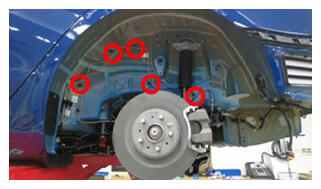

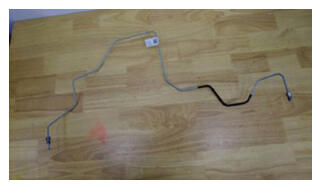

- Remove the clips (x5) that attach the brake line to the body, and then remove the brake line from the vehicle.NOTE: No bending of the brake line is allowed.
