Brake Pedal - Pedal Assembly LHD, Base - Remove And Replace: Remove
- Open the LH front door and lower the LH front window.
- Remove the rear underhood apron. See UNDERHOOD TRIM - REAR APRON ASSEMBLY - REMOVE AND REPLACE .
- Disconnect LV power. See LV BATTERY - LI-ION - DISCONNECT AND CONNECT .
- Remove the driver footwell cover. See DASH PANEL - DRIVER FOOTWELL COVER ASSEMBLY - REMOVE AND REPLACE .
- Remove the LH footwell duct. See INTERIOR DUCTING AND VENTS - IP, DRIVER, FOOTWELL, DUCT - REMOVE AND REPLACE .

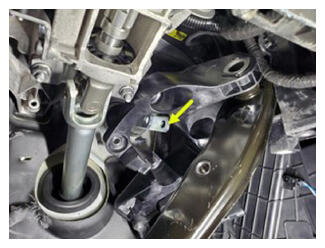

- Remove the brake clevis clip. See BRAKES - BRAKE PEDAL - BRAKE PEDAL - BRAKE PEDAL CLEVIS PIN - REMOVE AND REPLACE .

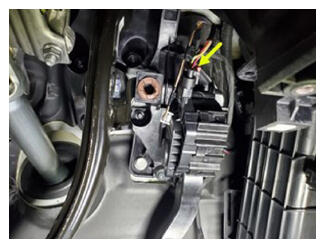

- Disconnect the accelerator pedal electrical connector.

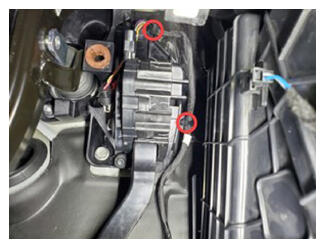

- Release the clips (x2) that attach the electrical harness to the brake pedal assembly.

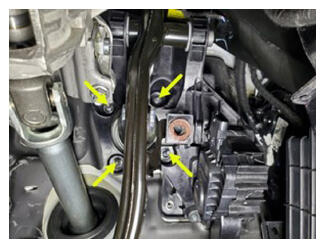

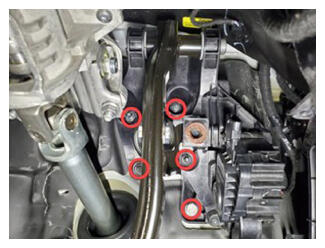

- Remove the bolt and the nuts (x4) that attach the brake pedal assembly to the vehicle, and then discard the nuts.
Tip: Use of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- 13 mm deep socket
- 4 in extension
- Ratchet/torque wrench

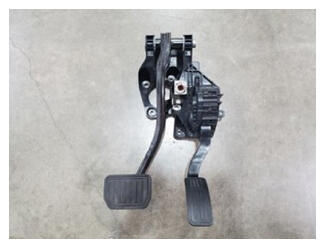

- Remove the brake pedal and the accelerator pedal as an assembly from the vehicle.
