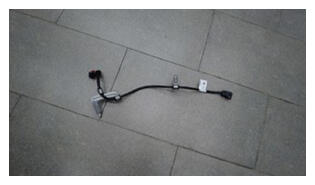

Rear Brake Rotors - Calipers And Pads - Assembly, EPB Jumper, LH, Base - Remove And Replace: Remove
- Remove the LH rear wheel. See WHEEL ASSEMBLY - REMOVE AND INSTALL .
- Remove the LH rear wheel arch liner. See WHEEL ARCH LINERS - REAR WHEEL LINER, LH - REMOVE AND REPLACE .
- Disconnect the LH rear EPB caliper connector.

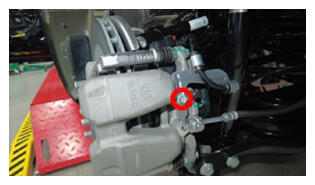

- Remove the bolt that attaches the LH rear EPB harness bracket to the LH rear caliper.
Tip: Use of the following tool(s) is recommended:
- 4 in extension
- Ratchet/torque wrench
- 10 mm socket

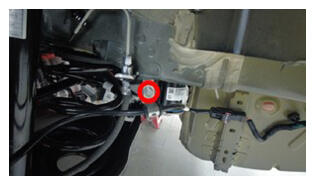

- Remove the bolt that attaches the LH rear EPB harness bracket to the body.
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- Ratchet/torque wrench
- 4 in extension

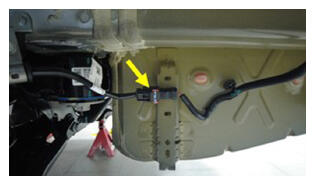

- Disconnect the LH rear EPB connector from the rear main body harness.
