Front Brake Rotors - Calipers and Pads - Service Front Brake Pad Kit - Remove And Replace: Remove
- Raise and support the vehicle. See RAISE VEHICLE - 2 STANDS
.
- Remove the rear underhood apron. See UNDERHOOD TRIM - REAR APRON ASSEMBLY - REMOVE AND REPLACE
.
- Place absorbent material underneath the brake booster and reservoir area.
- Remove the LH and RH front wheels. See WHEEL ASSEMBLY - REMOVE AND INSTALL
.
- Remove the brake pad retaining pins that attach the anti-rattle spring from the LH front brake caliper.
 Courtesy of TESLA, INC.
|

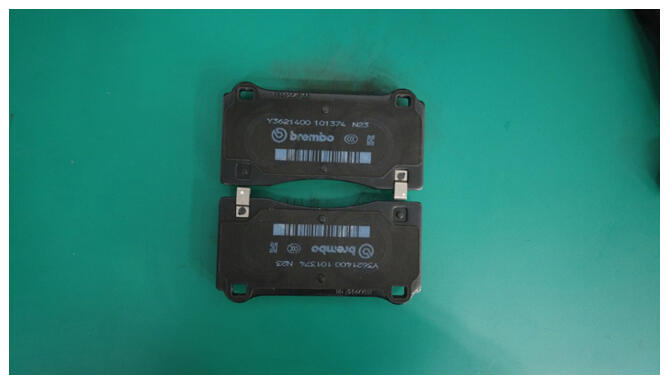

- Remove the front brake pads from the LH front brake caliper.
 Courtesy of TESLA, INC.
|
- Use the caliper spreader kit or similar tool to gently push the piston back into the caliper.
 Courtesy of TESLA, INC.
|
- Clean the caliper pins and anti-rattle spring with soapy water and a hand brush.
- Repeat step 5 through step 8 to remove the RH front brake pads.
 Courtesy of TESLA, INC.
|
