Wheel Speed Sensors - Front Wheel Speed Sensor - Remove And Replace: Remove
- Remove the LH front wheel. See WHEEL ASSEMBLY - REMOVE AND INSTALL .

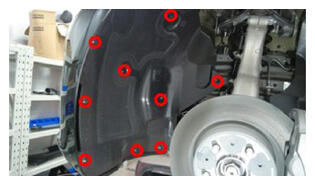

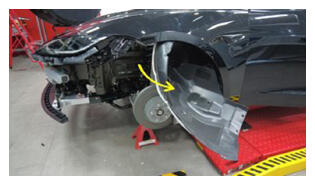

- Release the clips (x9) that attach the front of the LH front wheel arch liner to the vehicle, and then release the front portion of the LH front wheel arch liner.

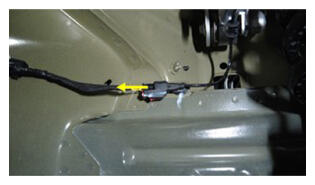

- Disconnect the electrical harness from the LH front ABS wheel speed sensor connector.

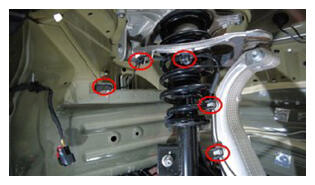

- Release the clips (x5) that attach the LH front ABS wheel speed sensor harness to the LH front upper control arm.

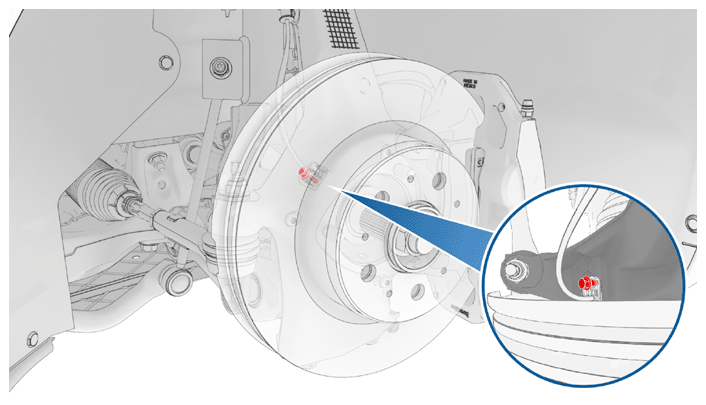

- Remove the bolt that attaches the LH front ABS wheel speed sensor to the knuckle.
Tip: Use of the following tool(s) is recommended:
- 10 mm deep socket
- Flex head ratchet/flex head torque wrench
- 4 in extension

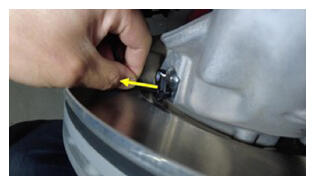

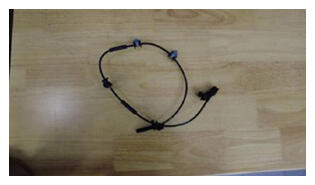

- Remove the LH front ABS wheel speed sensor from the vehicle.
