Wheel Speed Sensors - Front Wheel Speed Sensor - Remove And Replace: Install

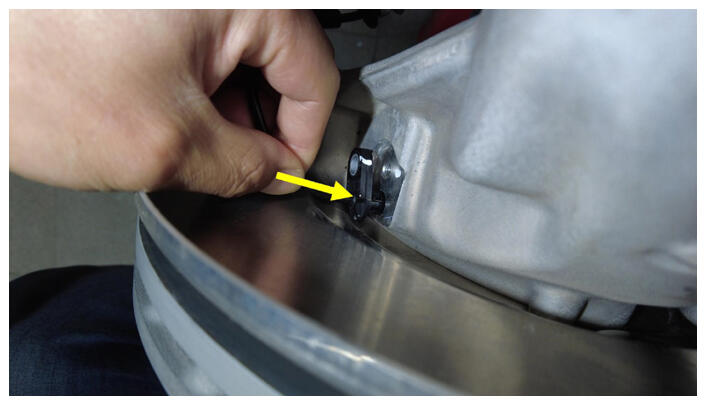

Install the LH front ABS wheel speed sensor to the knuckle.

Courtesy of TESLA, INC.

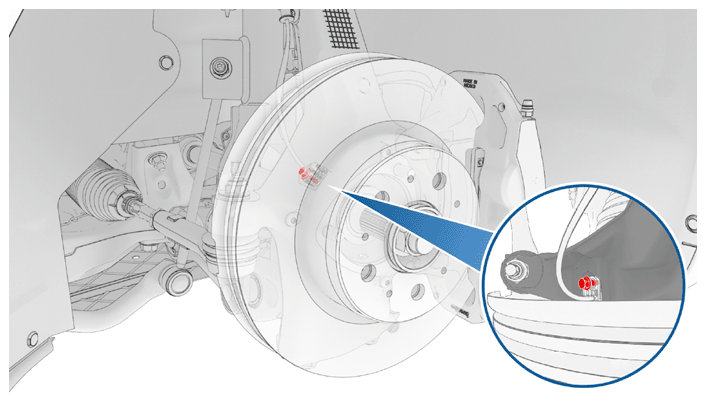

Install the bolt that attaches the LH front ABS wheel speed sensor to the knuckle.
5 N.m (3.7 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- 10 mm deep socket
- Flex head ratchet/flex head torque wrench
- 4 in extension
Courtesy of TESLA, INC.

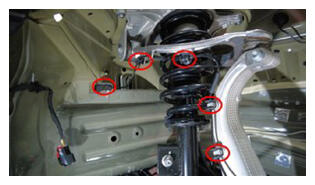

Fasten the clips (x5) that attach the LH front ABS wheel speed sensor harness to the LH front upper control arm.
CAUTION: Ensure the harness is routed correctly to avoid contact with moving suspension components.

CAUTION: Perform a push-pull check on each clip to make sure they are fully attached to the upper control arm.

Courtesy of TESLA, INC.

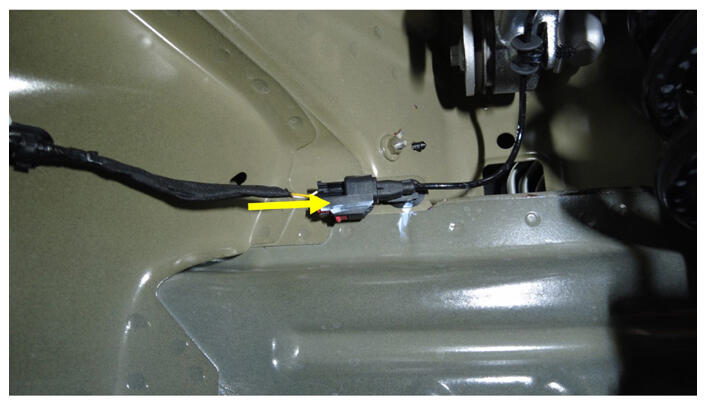

Connect the electrical harness to the LH front ABS wheel speed sensor connector.

Courtesy of TESLA, INC.

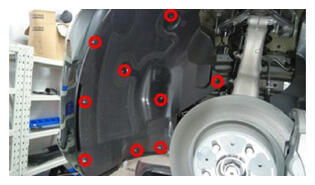

Install the clips (x9) that attach the front of the LH front wheel arch liner to the vehicle.

Courtesy of TESLA, INC.
Install the LH front wheel. See WHEEL ASSEMBLY - REMOVE AND INSTALL .
Perform a test drive that includes a minimum speed of 25 mph in straight line for at least five seconds to allow the ESP internal system checks to complete. The ESP faults will clear if the vehicle is repaired correctly. If faults are persistent after the test drive, continue troubleshooting the repair.
