Jounce Hoses - Rear Brake Hose - Remove And Replace: Install

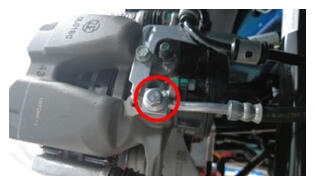

Position the LH rear flexible brake hose into the vehicle, and then install the bolt that attaches the hose to the LH rear brake caliper.
42 N.m (31.0 lbs-ft)

WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

multimedia:A supplement to the article is available.

NOTE: The bolt and washers are captive in the new hose assembly.

Tip: Use of the following tool(s) is recommended:
- Ratchet/torque wrench
- 11 mm 12-point deep socket
Courtesy of TESLA, INC.

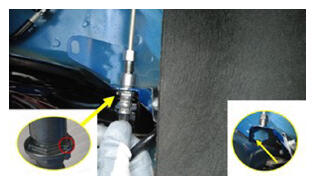

Install the brake hose into the jounce hose bracket, and then install a new clip that attaches the brake hose to the jounce hose bracket.

Courtesy of TESLA, INC.

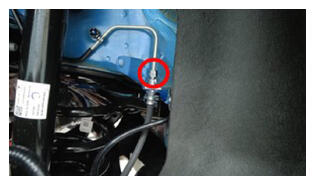

Install the brake line tube nut to the brake hose at the jounce hose bracket.
16 N.m (11.8 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- 3 in extension
- Ratchet/torque wrench
- 12 mm socket
Courtesy of TESLA, INC.
Remove the oil drain from under the vehicle.
Perform a brake fluid flush on the brakes. See BRAKE FLUID BLEED/FLUSH (MAINTENANCE) .
