Brake Lines - Master Cylinder to ABS (RHD) - Remove And Replace: Install

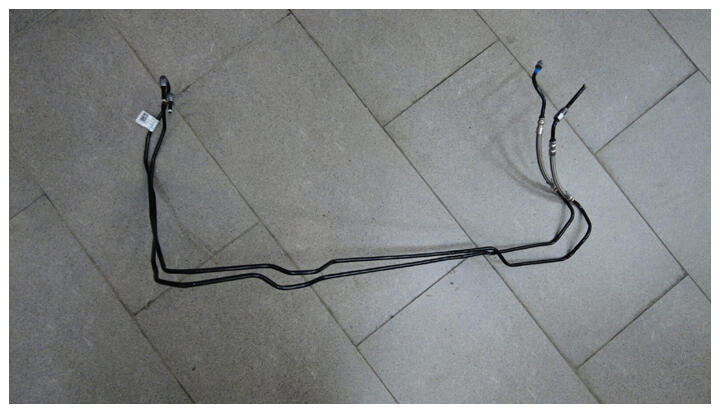

  1. Install brake line bundle to vehicle
    G16603198Courtesy of TESLA, INC.

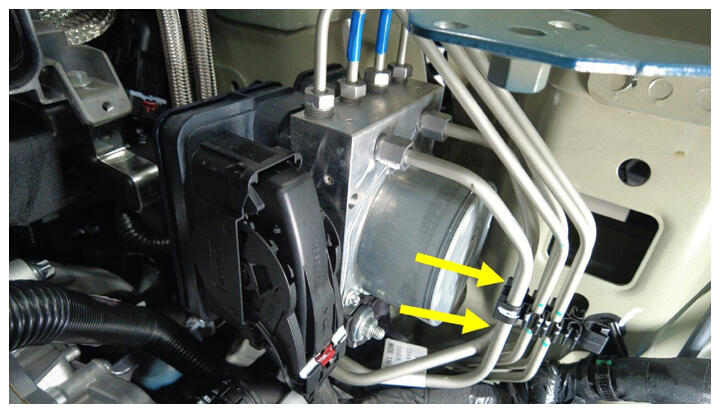

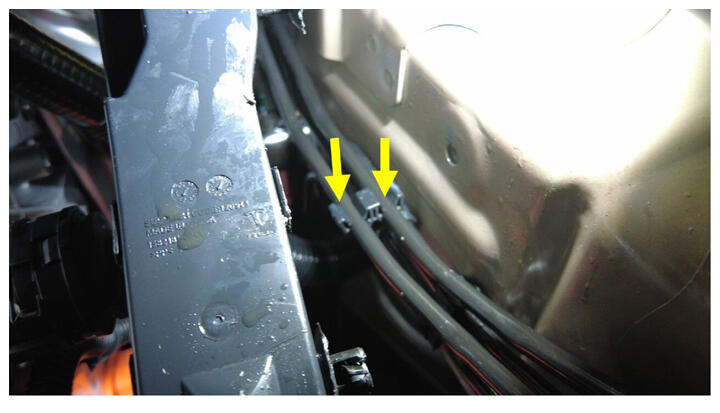

  2. Install primary and secondary pipe to bundle clips
    NOTE: 2x clips
    G16603199Courtesy of TESLA, INC.
    G16603200Courtesy of TESLA, INC.

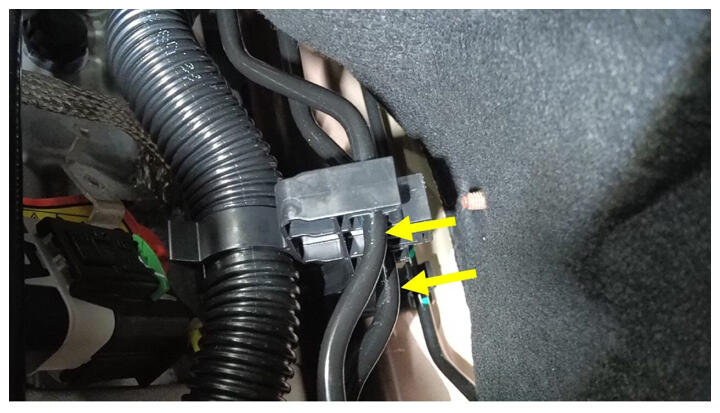

  3. Install primary and secondary pipe to RH bundle clip
    G16603201Courtesy of TESLA, INC.

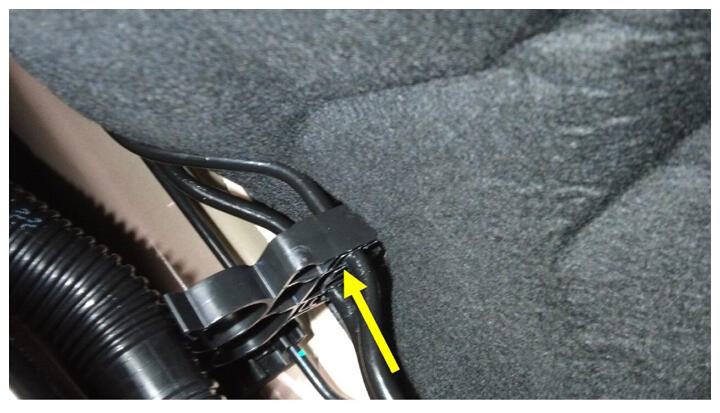

  4. Install RH bundle clip to body
    NOTE: Be careful with water pipe during disassembly
    G16603202Courtesy of TESLA, INC.

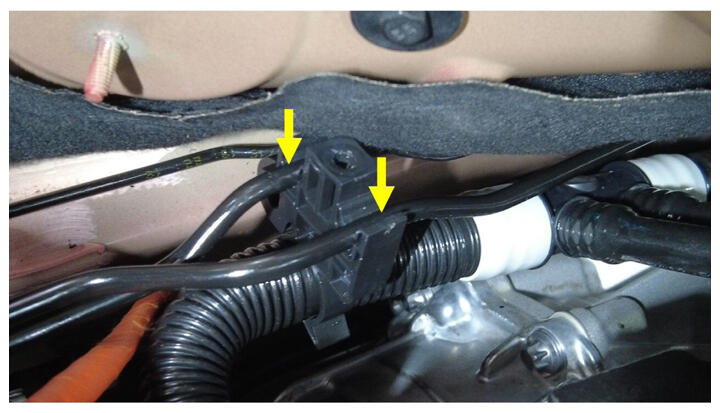

  5. Install primary and secondary pipe to LH bundle clip
    G16603203Courtesy of TESLA, INC.

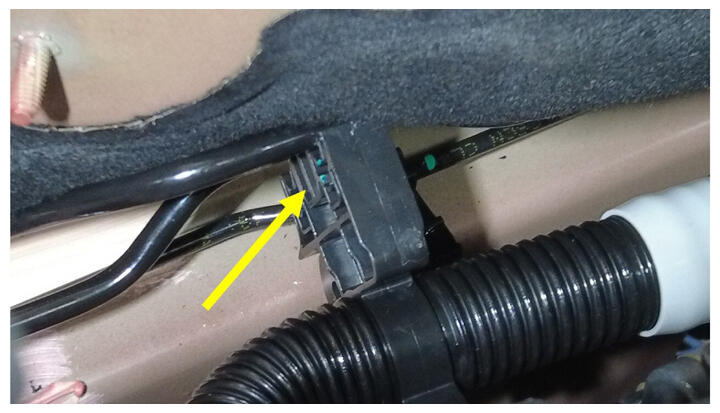

  6. Install LH bundle clip to body
    NOTE: Be careful with water pipe during disassembly
    G16603204Courtesy of TESLA, INC.

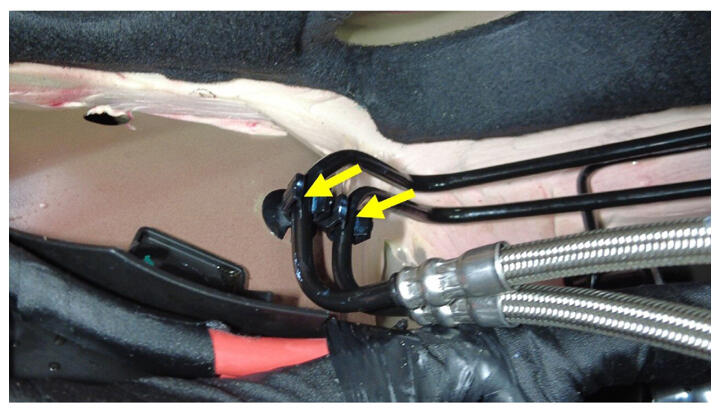

  7. Install primary and secondary pipe to bundle clip
    G16603205Courtesy of TESLA, INC.

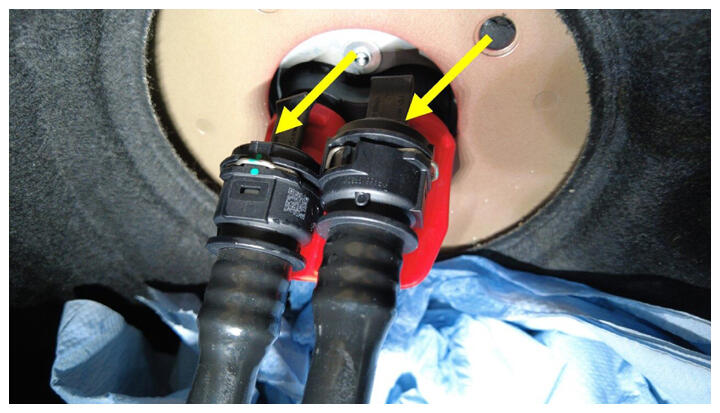

  8. Remove plugs to car computer coolant hoses
    NOTE: 2x plugs, Do not need to engage spring clips
    G16603206Courtesy of TESLA, INC.

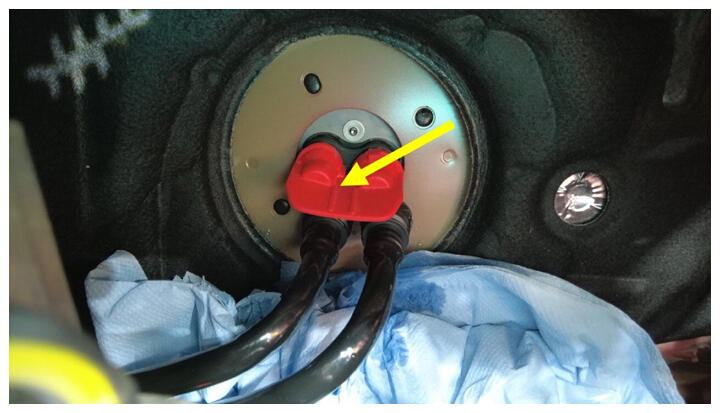

  9. Remove coolant plug from car computer
    NOTE: 1x coolant plug
    G16603207Courtesy of TESLA, INC.

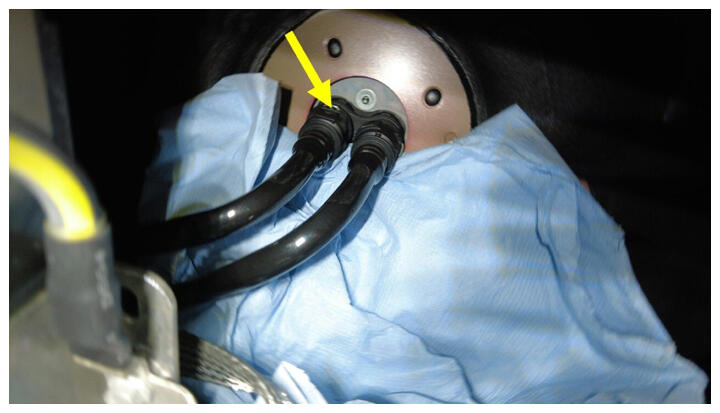

  10. Install inner coolant hose to car computer mount
    NOTE: 1x spring clip, Plug hose
    G16603208Courtesy of TESLA, INC.

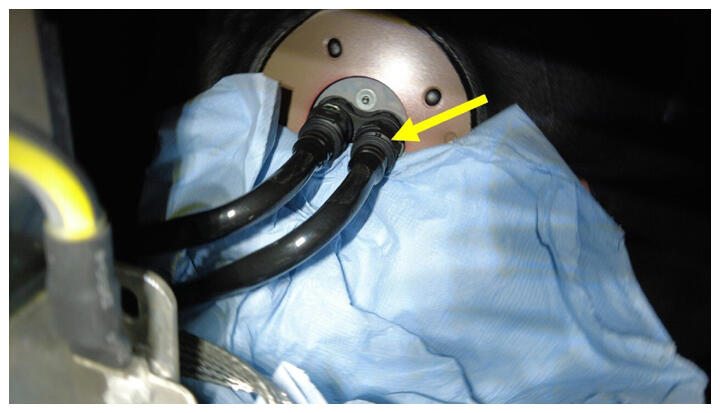

  11. Install outer coolant hose to car computer mount
    NOTE: 1x spring clip, Plug hose
    G16603209Courtesy of TESLA, INC.

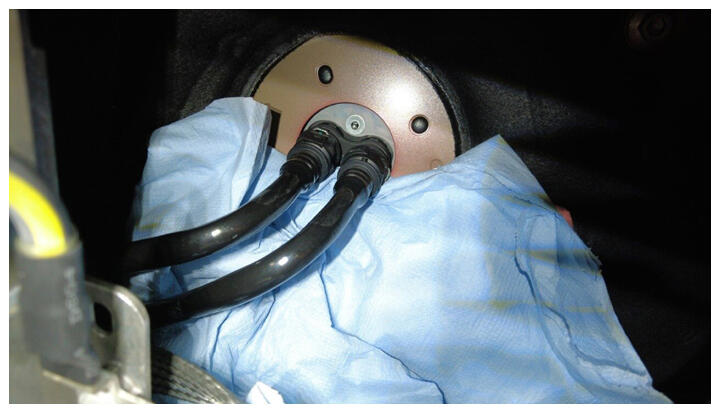

  12. Remove absorbent material
    G16603210Courtesy of TESLA, INC.

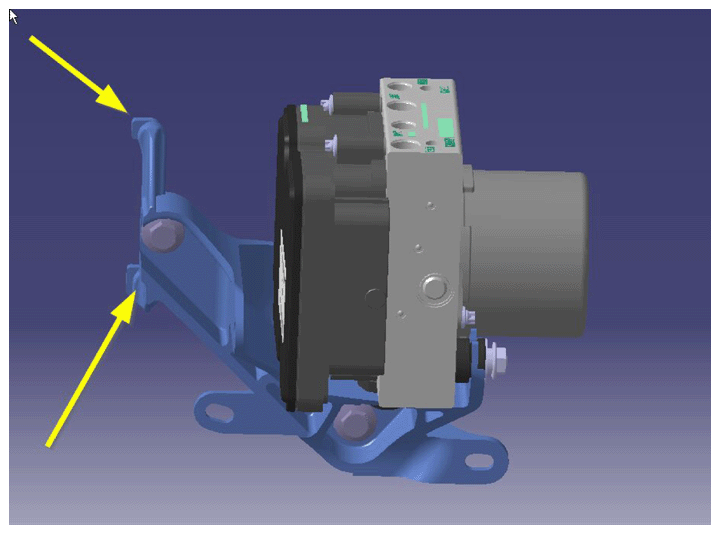

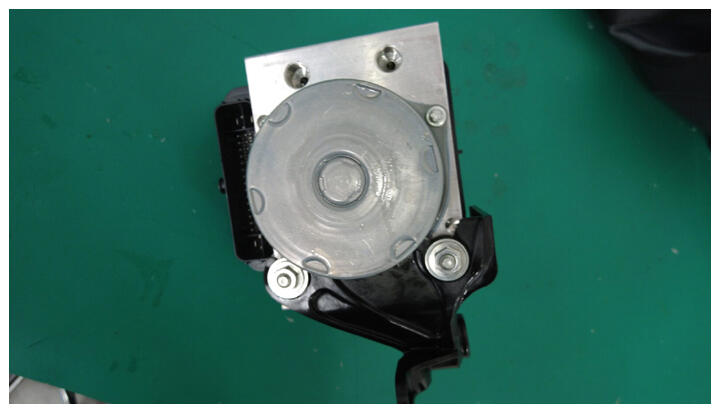

  13. Install hydraulic control unit and bracket to vehicle
    NOTE: 2x tabs
    G16603211Courtesy of TESLA, INC.
    G16603212Courtesy of TESLA, INC.

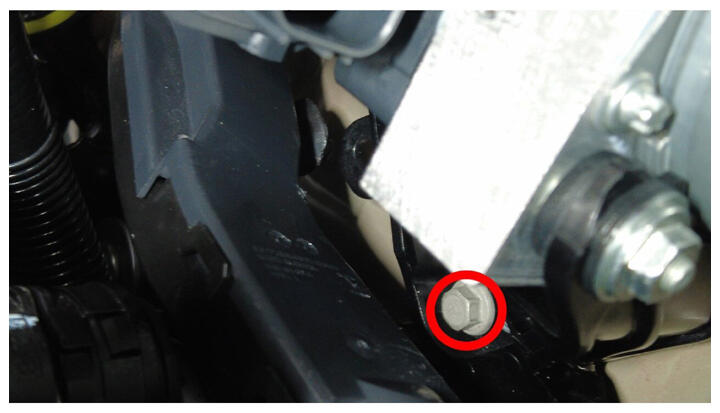

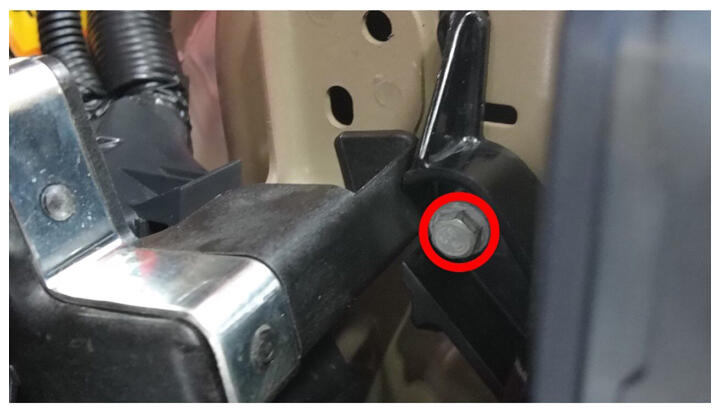

  14. Install bolts securing hydraulic control unit bracket to frame rail
    NOTE: 2x bolts, 10 mm, 10 N.m
    G16603213Courtesy of TESLA, INC.
    G16603214Courtesy of TESLA, INC.

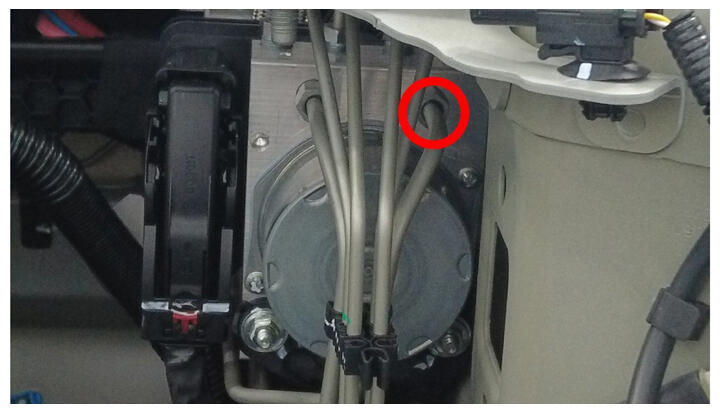

  15. Install the master cylinder primary pipe nut to hydraulic control unit
    NOTE: 1x nut, 12 mm, 16 N.m
    G16603215Courtesy of TESLA, INC.

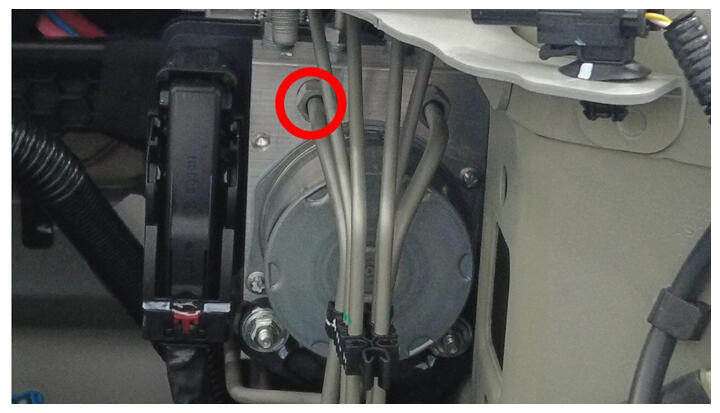

  16. Install the master cylinder secondary pipe nut to hydraulic control unit
    NOTE: 1x nut, 12 mm, 16 N.m
    G16603216Courtesy of TESLA, INC.

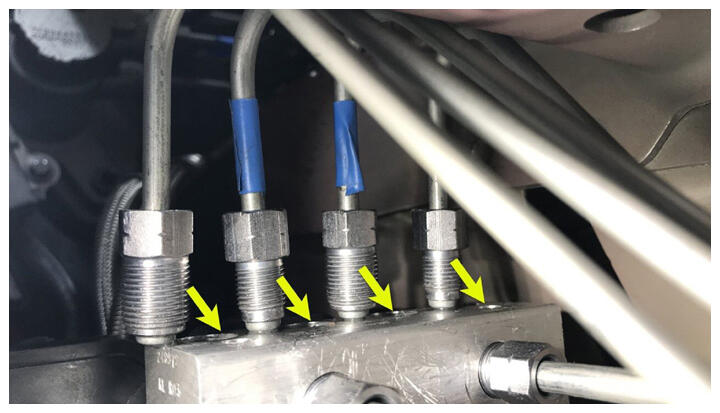

  17. Move master cylinder lines into position for installation
    G16603217Courtesy of TESLA, INC.

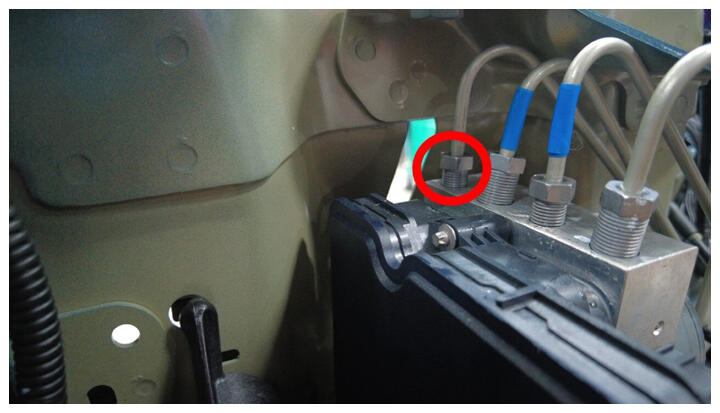

  18. Install LH front brake line tube nut to hydraulic control unit
    NOTE: 1x nut, 12 mm, 16 N.m
    G16603218Courtesy of TESLA, INC.

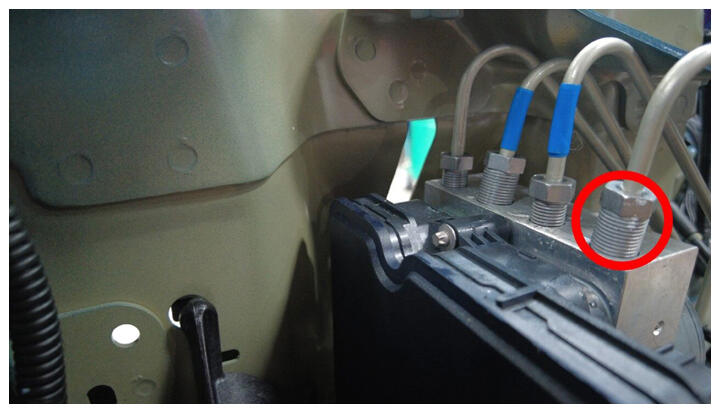

  19. Install RH front brake line tube nut to hydraulic control unit
    NOTE: 1x nut, 12 mm, 16 N.m
    G16603219Courtesy of TESLA, INC.

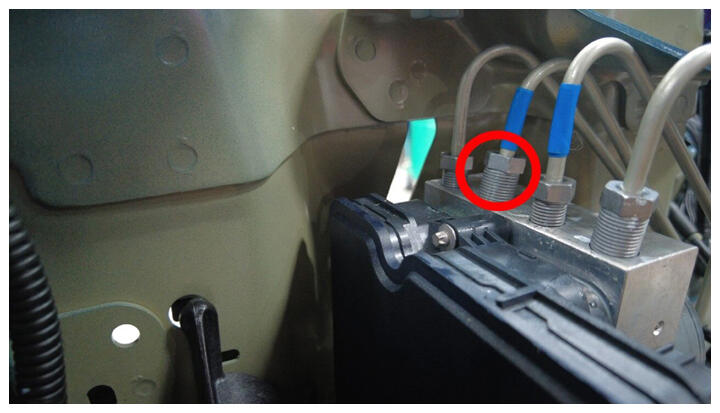

  20. Install RH rear brake line tube nut to hydraulic control unit
    NOTE: 1x nut, 12 mm, 16 N.m
    G16603220Courtesy of TESLA, INC.

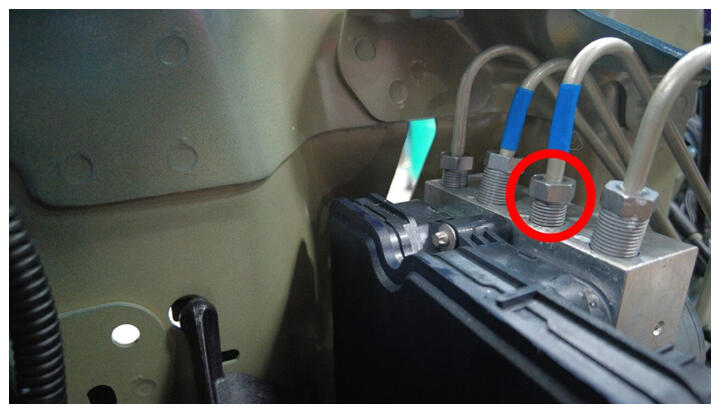

  21. Install LH rear brake line tube nut to hydraulic control unit
    NOTE: 1x nut, 12 mm, 16 N.m
    G16603221Courtesy of TESLA, INC.
  22. Install RH front brake line tube nut to hydraulic control unit
    NOTE: 1x nut, 12 mm, 16 N.m
    G16603222Courtesy of TESLA, INC.

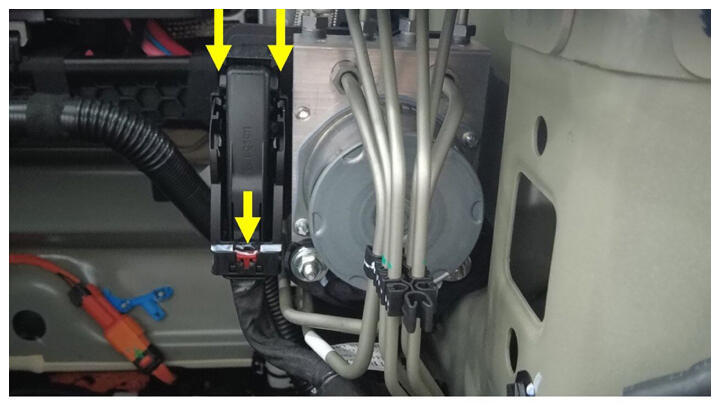

  23. Connect the hydraulic control unit connector
    NOTE: 1x connector, Gently push connector downward, Engage locking tab
    G16603223Courtesy of TESLA, INC.

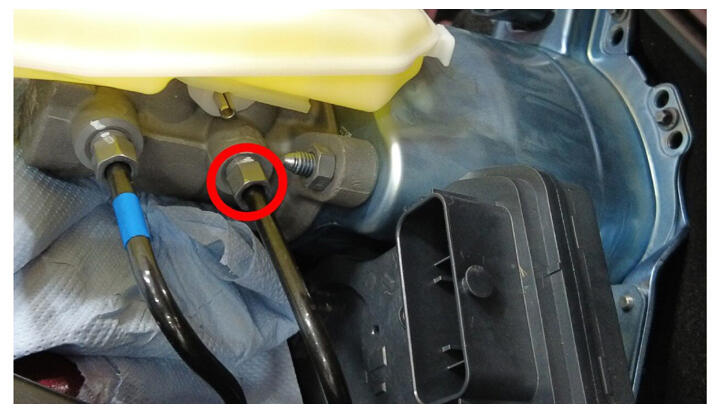

  24. Connect rear brake line into brake booster
    NOTE: 1x nut, 12 mm, 16 N.m
    G16603224Courtesy of TESLA, INC.
  25. Connect forward brake line into brake booster
    NOTE: 1x nut, 12 mm, 16 N.m
    G16603225Courtesy of TESLA, INC.

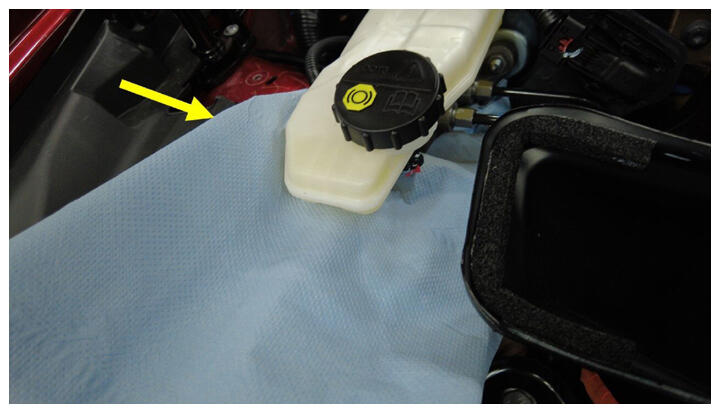

  26. Remove absorbent material from underneath brake booster and reservoir area
    G16603226Courtesy of TESLA, INC.

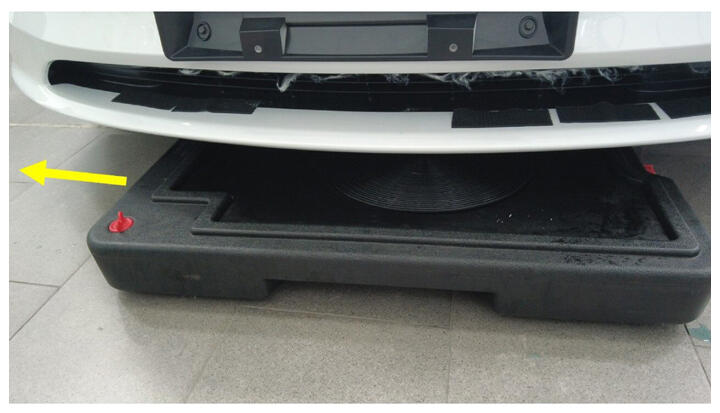

  27. Remove fluid catcher from underneath vehicle
    G16603227Courtesy of TESLA, INC.

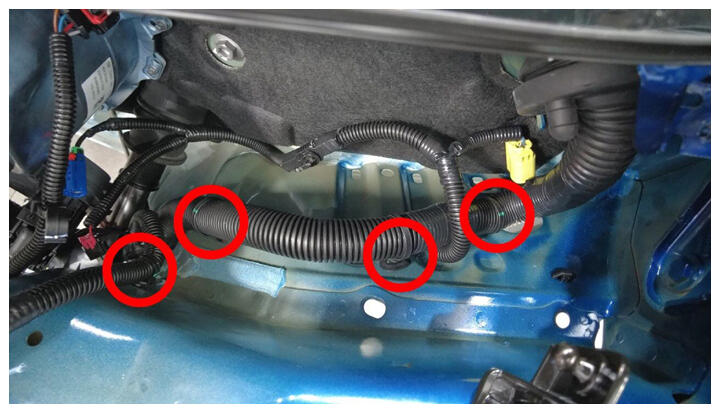

  28. Secure clips securing harness behind LH shock tower
    NOTE: 4x clips
    G16603228Courtesy of TESLA, INC.

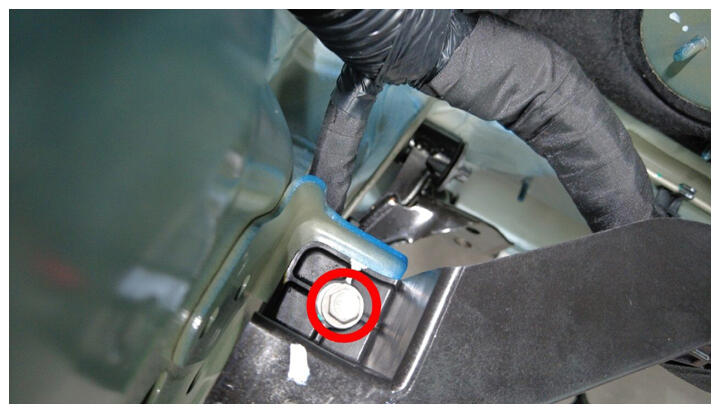

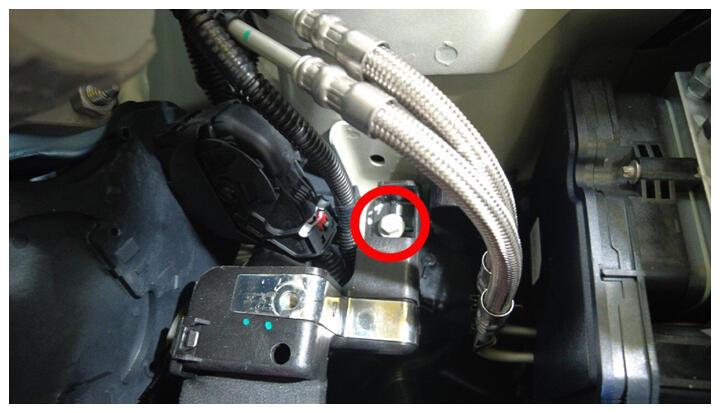

  29. Install bolts securing front harness bracket from vehicle
    NOTE: 2x bolts, 10 mm, 9 N.m
    G16603229Courtesy of TESLA, INC.
    G16603230Courtesy of TESLA, INC.

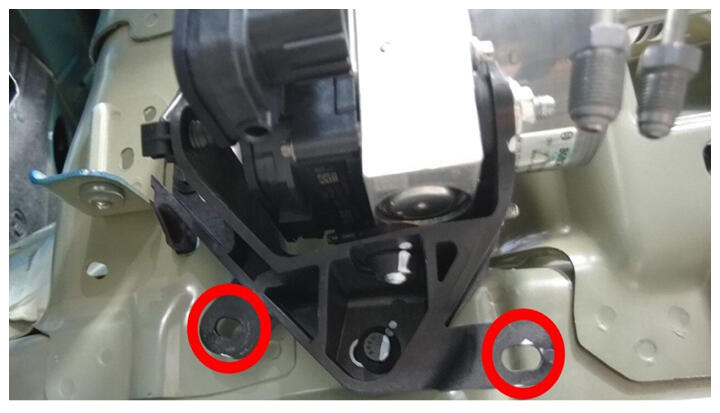

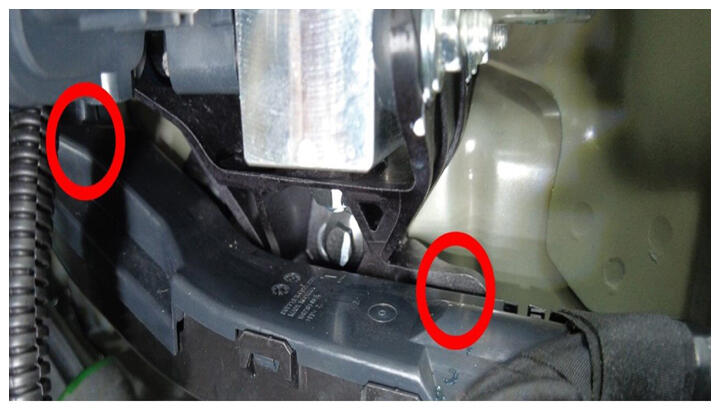

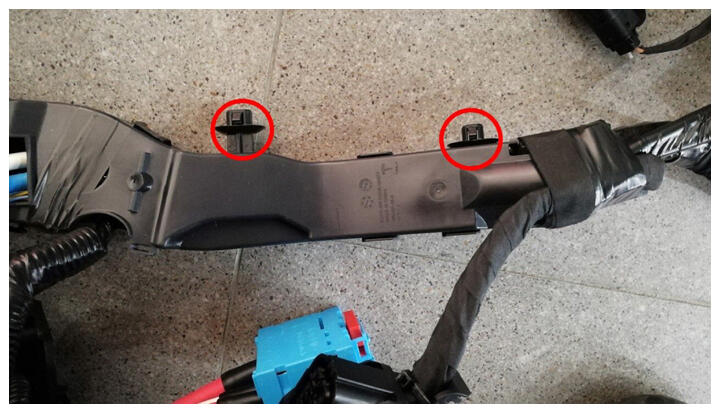

  30. Secure LH harness bracket clips to vehicle
    NOTE: 2x clips
    G16603231Courtesy of TESLA, INC.
    G16603232Courtesy of TESLA, INC.
    G16603233Courtesy of TESLA, INC.
  31. Secure front harness clips around LH front frame rail area
    NOTE: 6x clips
    G16603234Courtesy of TESLA, INC.

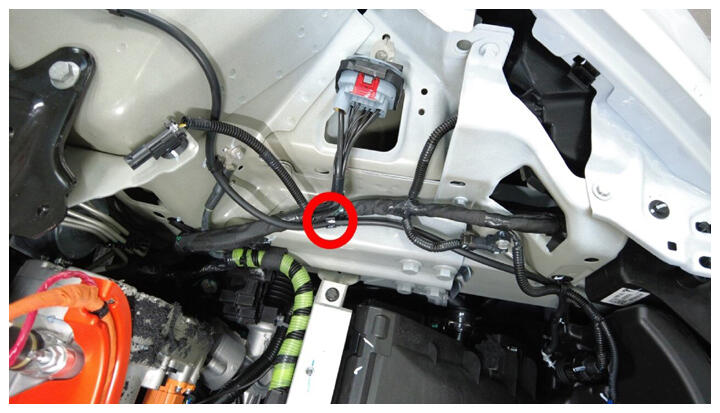

  32. Secure washer hose to LH front frame rail area
    NOTE: 1x clip
    G16603235Courtesy of TESLA, INC.

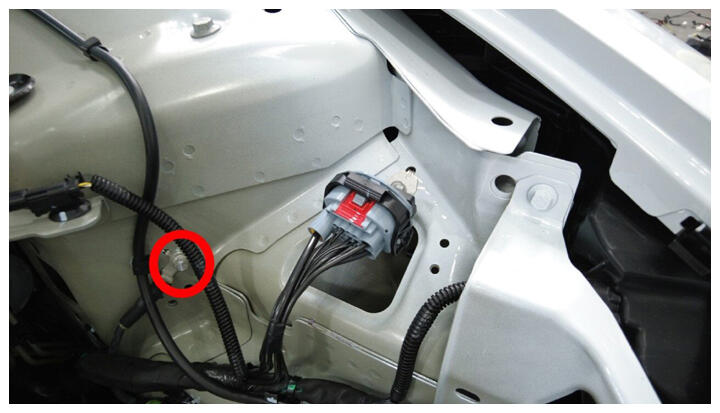

  33. Install bolts securing front harness ground terminal at LH front shock tower
    NOTE: 1x bolts, 10 mm, 8 N.m,
    G16603236Courtesy of TESLA, INC.
  34. Connect FDU front subframe harness
    NOTE: 1x connector

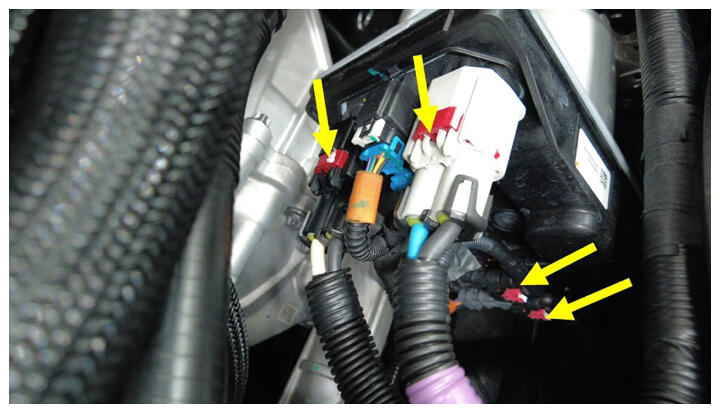

  35. Connect steering gear assembly connectors
    NOTE: 4x connectors
    G16603237Courtesy of TESLA, INC.
  36. Install the front body controller. See BODY CONTROLLERS - ASSEMBLY, FRONT CONTROLLER GEN 3 - REMOVE AND REPLACE .
  37. Install the shock tower brace. See BODY - BODY PANELS - FRONT INNER PANELS - SHOCK TOWER BRACE ASSEMBLY - REMOVE AND REPLACE .
  38. Install the LV battery. See LV BATTERY - LI-ION BATTERY PACK - REMOVE AND REPLACE .
  39. Install the fresh air intake assembly. See CABIN HVAC - HVAC, FRESH AIR INTAKE - REMOVE AND REPLACE .
  40. Install the wiper module. See RHD ELECTRICAL - WIPERS AND WASHER - WINDSHIELD WIPERS AND MOTOR - WIPER MODULE - REMOVE AND REPLACE .
  41. Install the steering column. See RHD STEERING - STEERING RACK AND LOWER COLUMN - STEERING GEAR AND LOWER COLUMN - STEERING GEAR ASSEMBLY (RR) - REMOVE AND REPLACE .
  42. Perform a road test using a series of aggressive stops to make sure there is proper pedal feel and brake performance.
    NOTE: Add test drive correction code 00040100 as a separate activity to the Service Visit.
